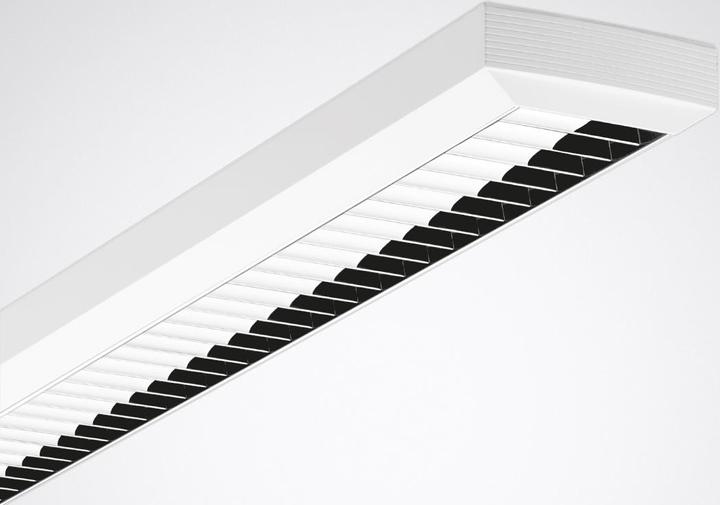

Trilux LED Louvre Luminaire RPV 1200 Atirion D-L #6483640
3500 lmMore than 10 items in stock at supplier
Product details

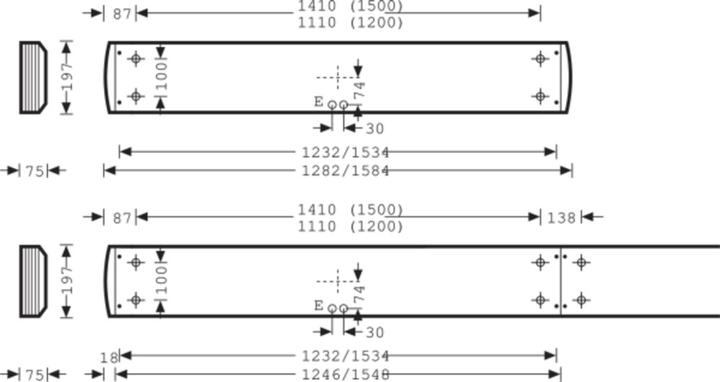

LED surface-mounted light for individual or light band applications. Designed for installation on ceilings and overhangs in indoor spaces. Features a highly glossy, anodized parabolic reflector grid. Grid attachment and automatic electrical protection through contact closures. The grid can be folded down and removed from both sides without tools. Glare rating according to UGR classification (EN 12464-1) < 19. Screen-friendly according to EN 12464-1 with limited luminance L = 1500 cd/m² for emission angles above 65° all around. Rated luminous flux 3500 lm, rated power 31.00 W, luminous efficacy of the luminaire 113 lm/W. Light color neutral white, color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated lifetime L80(tq 25 °C) = 35,000 h, average rated lifetime L70(tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements. Luminaire body made of sheet steel with a white coated surface (RAL 9016). Flat profile design, angled 55° towards the room side. Dimensions (L x W): 1246 mm x 197 mm, luminaire height 75 mm. End caps for individual luminaires or light band ends must be ordered separately. Luminaire body with integrated coupling bridges for precisely aligned light bands with continuous grids. Permissible ambient temperature (ta): -20 °C to +. Protection class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance grade according to IEC 62262: IK02, test temperature for glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.5 kg. With electronic control gear, switchable. The control gear is replaceable according to eco-design requirements. The product meets the fundamental requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.
Application range | Indoor |
Scope of illuminant | incl. fixed light bulb |
Dimmability | Not dimmable |
Width | 124.60 cm |
Height | 7.50 cm |
Material | Steel |
Item number | 32103203 |
Manufacturer | Trilux |
Category | Wall lamps + Ceiling lamps |
Manufacturer no. | 6483640 |
Release date | 22.11.2022 |
Colour | White |
Exact colour description | White |
Material group | Metal |
Material | Steel |
Application range | Indoor |
Wall & Ceiling Light Type | LED panel |
Adjustability | None |
Dimmability | Not dimmable |
Form | Rectangular |
Scope of illuminant | incl. fixed light bulb |
Bulb type | LED light |
Shape | Other |
Housing | Matt |
Luminous flux | 3500 lm |
Light colour | Neutral White |
Colour temperature | 4000 K |
Colour rendering index | 80 |
Shielding angle | 80° |
Lamp service life | 50000 h |
Number of lights | 1 x |
Max. power per lamp | 31 W |
Smart Home | Not compatible |
Power supply | Electrical connection |
input voltage | 220 - 240 V |
Conventional energy consumption | 31 W |
Power consumption | 31 W |
Protection type (IP code) | IP20 |
Protection class | Protection class I |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 19.70 cm |
Width | 124.60 cm |
Total height | 7.50 cm |
Height | 7.50 cm |
Diameter | 19.70 cm |
Weight | 3.50 kg |
