Dimensions and Technical Data

• 220-240 V ~ 50/60 Hz

• Housing color: Anthracite

• Max. power consumption: 1800 W

• Max. current consumption: 7.8 A

• Max. heating area: 5 m²

• Lifespan of quartz tube: approx. 3000 h

• Heating time: under 20 seconds

• Height: 132 mm

• Width: 570 mm

• Depth: 124 mm

• Weight: 2.4 kg

• Protection class: I

• Protection type: IPX4

• Includes pull switch: 600 W / 1200 W / 1800 W / off

• Delivery without cable

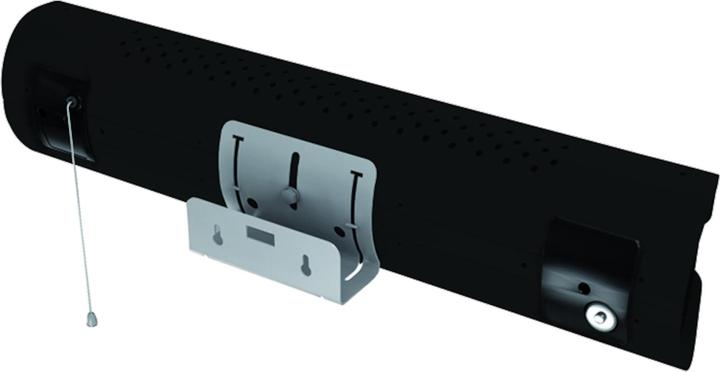

• Includes wall mount, tilt angle adjustable up to 20°

• Minimum distance to ceiling: 0.15 m

• Use: spot heating of areas for short periods, e.g., bathroom, changing table, smoking area

• For indoor use, to comply with the Ecodesign Regulation EU 2015/1188, the external control XT16-3P or an equivalent control must be used, which manages the operation of the device via a room thermostat, a weekly schedule, an operating time limitation, and an "open window detection." Otherwise, the device will lose its CE marking.
