3M TE100050950. Product colour: Black, Quantity per pack: 5 piece(s), Shrink temperature: 135 °C (TE100
5 xPrice in EUR including VAT
Free shipping starting at 30,–
3M Germany Heat Shrink Joint Kit 91-AH 20-5 N
Manufacturer: 3M Germany
Designation: Heat Shrink Joint Kit 5x1.5-6 mm²
Type: 91-AH 20-5 N
Rated Voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat Shrink
For connecting paper-insulated to plastic-insulated cables: no
Number of conductors: 5
Conductor nominal cross-section: 1.5..6 mm²
Mining approval: no
With concentric shielding: no
Suitable for: N(A)YY
Halogen-free: yes
The 3M heat shrink joint kit of the 91-AH N series is suitable for all unshielded, non-armored cables with PVC or VPE conductor insulation in the low voltage range up to 0.6/1 kV. It can be used for both outdoor applications and underground installation. It has been developed and approved according to DIN V 47640 for crimp connectors.

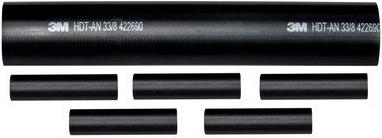

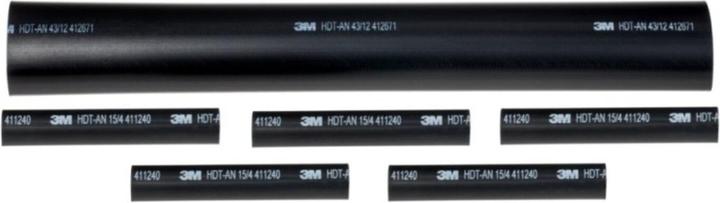

The heat shrink joint kit consists of a thick-walled, adhesive-coated outer tube and four or five adhesive-coated inner tubes. Crimp connectors are not included in the delivery. Due to its good resistance to chemicals and alkalis, it ensures high mechanical protection for the joint. It is UV resistant and provides excellent moisture protection.
The halogen-free joint kit has good insulating properties, making it suitable for use in electrical installations, in industry, and with utility companies. It is easy and quick to install - thanks to its slim design, it can also be used in confined spaces.
Heat shrink tubing type | Heat shrink tubing |
Items per sales unit | 5 x |
Diameter before shrinking | 6 mm |
Item number | 17541023 |
Manufacturer | 3M |
Category | Heat shrink tubing |
Manufacturer no. | 7000099517 |
Release date | 21.11.2021 |
Colour | Black |
Exact colour description | Black |
Heat shrink tubing type | Heat shrink tubing |
Diameter before shrinking | 6 mm |
Min. shrinkage temperature | 135° |
Shrink rate | 4.50 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer 3M fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 5 x |
Length | 210 mm |
