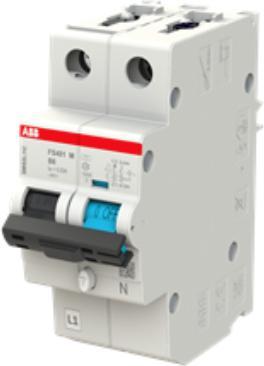

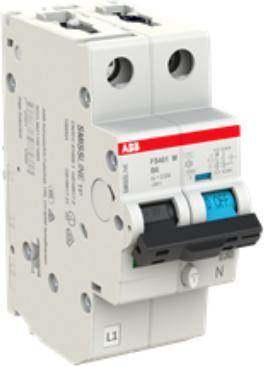

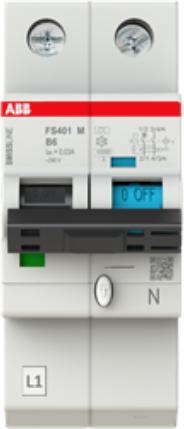

The ABB FS401M-C6/0.1 is a highly advanced protective switch that functions both as a residual current device and as an overcurrent protection switch. With a rated voltage of 400 V and a rated current of 6 A, this device provides reliable protection in electrical installations. It is suitable for use in both alternating current (AC) and direct current (DC) applications and meets the requirements of protection class IP20. Installation is straightforward on a DIN rail, making it easy to set up in various environments. The Type C tripping characteristic ensures a targeted response to overload and short-circuit conditions, thereby enhancing the safety of the electrical system. With a breaking capacity of 10,000 A, the protective switch offers high reliability and durability, making it an ideal choice for demanding applications.
Length | 68 mm |
Width | 36 mm |
number of poles | 2 |
Mounting type | Top-hat rail |
Item number | 59972602 |
Manufacturer | ABB |
Category | Residual-current device |
Manufacturer no. | 2CCG001683R0001 |
Release date | 6.7.2025 |
Colour | White |
Exact colour description | White |
Mounting type | Top-hat rail |
number of poles | 2 |
Tripping characteristic | C |
voltage type | AC/DC |
Protection type (IP code) | IP20 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 68 mm |
Width | 36 mm |
Height | 91 mm |
Weight | 200 g |
