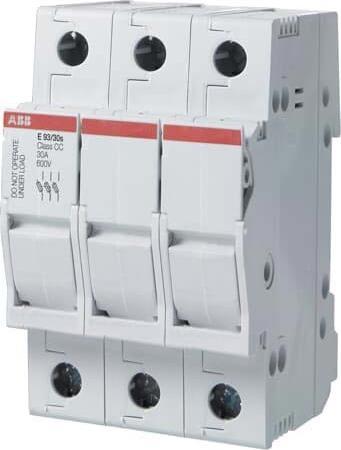

ABB Stotz S&J Fuse Holder E 93/30 CC

Manufacturer: ABB Stotz S&J
Designation: Fuse holder 3P, In=30A
Type: E 93/30 CC
Rated Voltage: 600 V
Mounting Type: DIN rail
For Fuse Size: 10x38 mm
Number of Poles: 3
With Switching Neutral: yes
Lockable: yes
With Optical Fault Indicator: no
Width in Division Units: 3
Installation Depth: 64 mm
Protection Class (IP): IP20

Additional Details:
The E 90 fuse holders for cylindrical fuse inserts of class CC have been specifically developed for the North American market in accordance with UL standards. According to the reference standards UL 4248-1 and UL 4248-4, they are available in versions with a rated voltage of up to 600 V and a rated current of up to 30 A. They are available in versions 1P, 1P+N, 2P, 3P, 3P+N, and 4P. They can be locked with a padlock (open position) or sealed (closed position). E 90 fuse holders are an ideal solution for process control systems and industrial plants, automation systems, and control circuits. The versions with fuse failure indication provide a visual signal in case of a fuse failure.
