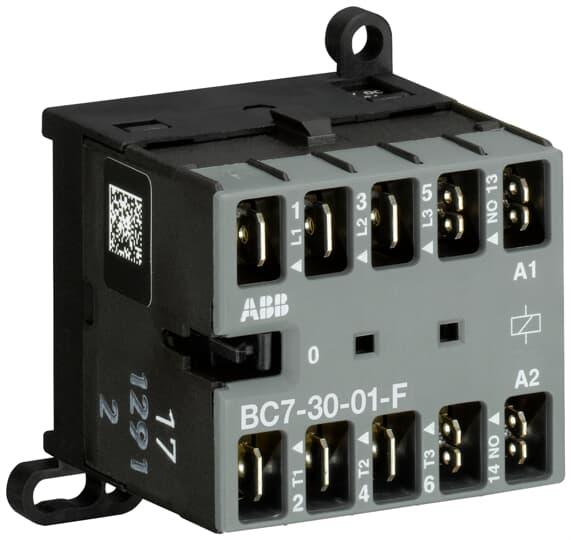

ABB Stotz S&J small contactor BC7-30-01-F-01

Manufacturer: ABB Stotz S&J
Designation: Small contactor 24VDC
Type: BC7-30-01-F-01
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 20 A
Rated operational current Ie at AC-3, 400 V: 12 A
Rated operational power at AC-3, 400 V: 5.5 kW
Rated operational power NEMA: 2.24 kW
Suitable for series mounting: No
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Blade terminal
Number of NO contacts as main contacts: 3

Further details: Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin, and blade terminal technology. This, together with a wide range of contact and coil variants, offers a very wide range of possible applications, even in unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, light inductive, or non-inductive loads. Attachable accessories are extinguishing elements and 2-pole auxiliary switches that can be plugged in at the side or front.
