Product details

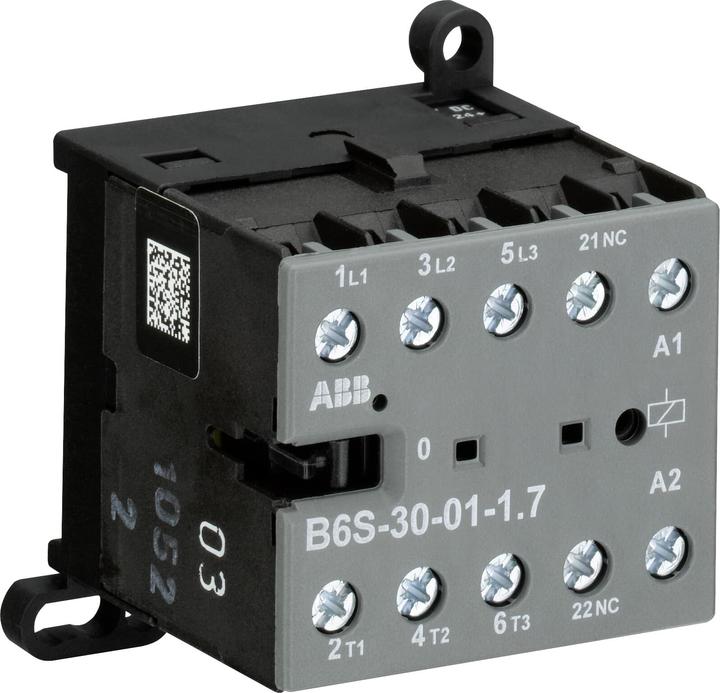

ABB Stotz S&J small contactor B6S-30-01-2.8-72

Manufacturer: ABB Stotz S&J
Designation: Small contactor 1NC 17-32VDC 2.8W
Type: B6S-30-01-2.8-72
Rated control supply voltage Us at DC: 17...32 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 20 A
Rated operational current Ie at AC-3, 400 V: 9 A
Rated operational power at AC-3, 400 V: 4 kW
Rated operational power NEMA: 1.4914 kW
Suitable for series installation: No
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details: Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin, and blade terminal technology. This, together with a wide range of contact and coil variants, offers a very wide range of possible applications, even in unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, light inductive, or non-inductive loads. Attachable accessories are extinguishing elements and 2-pole auxiliary switches that can be plugged in at the side or front.

Key specifications

Circuit breaker type
Circuit breaker
Length
46.70 mm
Width
52.50 mm
number of poles
3
Mounting type
Top-hat rail
Item number
36761392

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
GJL1213001R7012
Release date
28.6.2023

Colour

Colour
Black
Exact colour description
Black

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
Mounting type
Screw fastening
number of poles
3
Tripping characteristic
B
Rated current
20 A
Rated voltage
690 V
voltage type
AC/DC

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
46.70 mm
Width
52.50 mm
Height
57.50 mm
Weight
175 g
