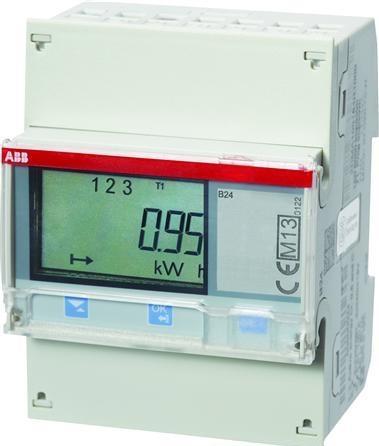

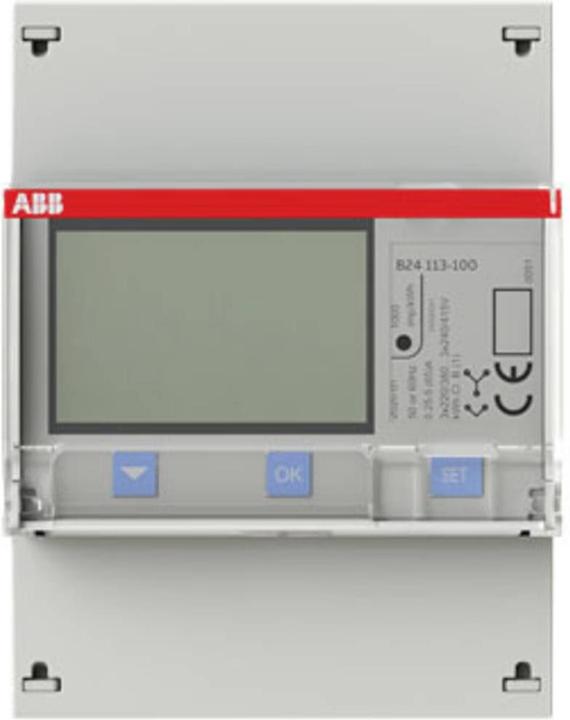

ABB Stotz S&J Measuring Transformer Meter B24 113-100

Manufacturer: ABB Stotz S&J
Designation: Measuring Transformer Meter M-Bus
Type: B24 113-100
Meter Type: electronic
Rated Current (In): 1 A
Maximum Current (Imax): 6 A
Rated Voltage (Un) N-L: 230..240 V
Rated Voltage (Un) L-L: 380..415 V
Frequency: 50..60 Hz
Accuracy Class: B
Connection Type: Four-wire
Design: Measuring Transformer
Energy Type: Active Power
Suitable for: Consumption
Tariff Version: Single Tariff
Load Profile Measurement: no
Reverse Prevention: yes
Calibrated: yes
Approval: Measuring Instruments Directive
Pulse Output: electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: digital
Mounting Type: REG
Width in Division Units: 4
Width: 70 mm
Depth: 65 mm
Height: 97 mm
Interface Design: M-Bus
EDL40 Signature: no
With Lock Code: no
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): other

Three-phase meter for measuring a three-wire or four-wire three-phase network via a transformer connection CT (transformer ratio for current configurable) up to a maximum of 6 A. The following values are displayed on a seven-segment display with up to 7 digits: active energy (Class 1), power, current, voltage (L-L, L-N), and frequency for each phase as well as total. Communication can occur via the integrated M-Bus interface or through the infrared interface for connecting a KNX module. The energy meter has an output that can be used either as a pulse output for active energy or as an alarm output. Up to 25 alarm values (thresholds with time delay) can be set. The meter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
