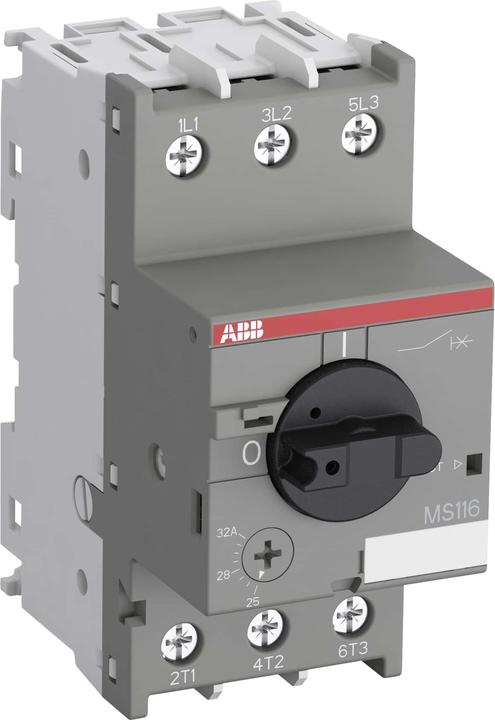

ABB Stotz S&J Motor Protection Circuit Breaker MS116-32

Manufacturer: ABB Stotz S&J
Designation: Motor protection circuit breaker up to 15 kW
Type: MS116-32
Overload release current setting: 25..32 A
Setting range of the instantaneous short-circuit release: 480 A
With thermal protection: yes
Phase failure sensitive: yes
Release technology: thermomagnetic
Rated operational voltage: 690 V
Rated continuous current Iu: 32 A
Rated operational power at AC-3, 400 V: 15 kW
Connection type main circuit: screw connection
Actuating element design: rotary knob
Device design: complete device in housing
With integrated auxiliary switch: no
With integrated undervoltage release: no
Number of poles: 3
Rated short-circuit breaking capacity Icu at 400 V, AC: 16 kA
Protection class (IP): IP20
Height: 97.8 mm
Width: 45 mm
Depth: 85.4 mm

ABB Stotz S&J Motor Protection Circuit Breaker MS116-32: additional details
The MS116 motor protection circuit breaker with thermal and electromagnetic protection represents a compact and economical series for motor protection up to 15 kW (400 V) with a module width of 45 mm. The temperature-compensated device features a rotary handle operation with a clear switching position indicator I/0. The rotary handle can be locked in the 0 position using a locking device. Auxiliary and signal contacts, as well as undervoltage and operating current releases, can be installed without tools. 3-phase busbars for 65 A or 100 A and feed blocks for 25 mm² or 35 mm² allow for the joint feeding of multiple motor protection circuit breakers. Protective housings and accessories for cabinet and door installation complete the range.
EAN: 4013614405679.
