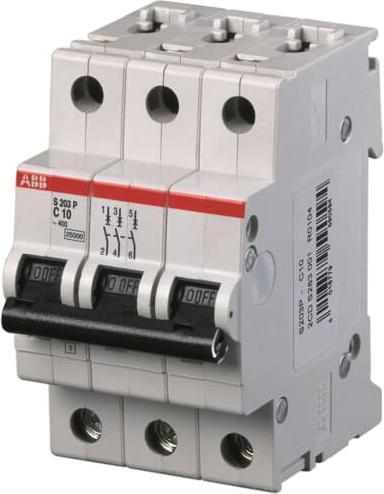

System pro M compact S200P miniature circuit breakers are current limiting. They feature two different tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. These breakers are available in various characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities (up to 25 kA at 230/400 V AC), and rated currents (up to 63A). All MCBs in the S200P product range comply with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235, making them suitable for residential, commercial, and industrial applications. A bottom-fitting auxiliary contact can be mounted on the S200P to save 50% space.
Length | 69 mm |
Width | 52.50 mm |
number of poles | 3 |
Mounting type | Top-hat rail |
Item number | 59972748 |
Manufacturer | ABB |
Category | Residual-current device |
Manufacturer no. | S203P-D6 |
Release date | 6.7.2025 |
Colour | Grey |
Exact colour description | Grey |
Mounting type | Top-hat rail |
number of poles | 3 |
Tripping characteristic | D |
Protection type (IP code) | IP20 |
CO₂-Emission | |
Climate contribution |
Length | 69 mm |
Width | 52.50 mm |
Height | 88 mm |
Weight | 420 g |
