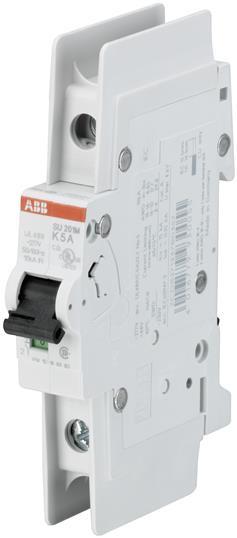

ABB SU201M-C10

Price in EUR including VAT
Ratings
BrandMore from ABB
Delivered between Thu, 23.10. and Sat, 25.10.
free shipping

Product details

The SU 200 M series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They meet the construction regulations of DIN VDE 0660-101 as well as IEC/EN60947-2 and UL489, as well as CSA 22.2 No. 5. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the terminal opening for wires is located above the terminal opening for the phase rail. Conductor cross-sections of up to 35 mm² can be connected directly to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. The combination of approvals according to UL489, CSA 22.2 No. 5, and IEC/EN60947-2 makes this device suitable for global use in high-demand applications and it undergoes three intensive tests for quality and performance before delivery.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
69 mm
Width
121 mm
number of poles
1
Mounting type
Top-hat rail
Item number
23916658

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDS271337R0104
Release date
24.10.2022

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
C/10 ka
Rated current
10 A
Rated voltage
277 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria, Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
69 mm
Width
121 mm
Height
111 mm
Weight
125 g
