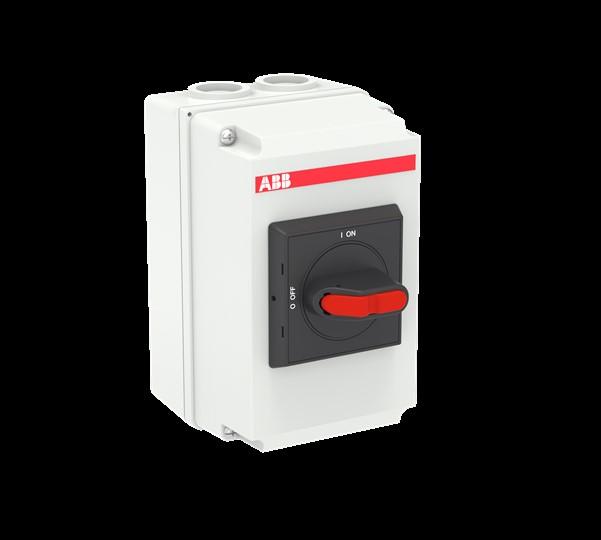

ABB Stotz S&J switch-disconnector OTDCP16S22M

Manufacturer: ABB Stotz S&J
Description: Switch-disconnector 4-p, 16A, DC, IP65
Type: OTDCP16S22M
Version as main switch: Yes
Version as maintenance/repair switch: No
Version as safety switch: No
Version as emergency stop device: No
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 1000 V
Rated operational voltage: 1000 V
Rated continuous current Iu: 16 A
Number of poles: 4
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Unit design: Complete unit in housing
Suitable for floor mounting: No
Suitable for front mounting 4-hole: Yes
Suitable for front mounting central: No
Suitable for distributor mounting: No
Suitable for intermediate mounting: No
Colour of operating element: Black
Design of operating element: Rotary knob
Lockable: No
Connection type main circuit: Screw connection
Protection class (IP), front: IP65
Protection class (NEMA): 4

The manually operated switch-disconnectors in the OTDCP series enclosure are a cost-effective and reliable solution for a wide range of industrial DC applications. The OTDCP series easily switches currents from 16 A to 32 A at voltages up to 1000 V DC. Due to different mounting options, the switches allow high flexibility and efficiency in planning. The series has IEC approval and ensures reliable breaking performance at all current levels without compromising safety. In addition, the switches are designed to be used in particularly high ambient temperatures. The power loss has been reduced by 50%. ABB offers a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches, and terminal covers. Therefore, the enclosed DC switch-disconnectors can be used in the most demanding applications.
