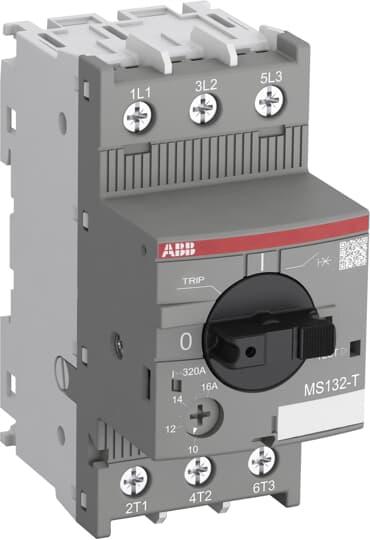

ABB Stotz S&J Transformer Protection Switch MS132-16T

Manufacturer: ABB Stotz S&J
Designation: Transformer Protection Switch
Type: MS132-16T
Rated Continuous Current Iu: 16 A
Rated Voltage: 690 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 100 kA
Overload Relay Current Setting: 10..16 A
Setting Range of the Instantaneous Short-Circuit Release: 320 A
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw Connection
Device Design: Complete Device in Enclosure
Suitable for DIN Rail Mounting: yes
DIN Rail Mounting Optional: yes
With Trip Indicator: yes
With Integrated Under-Voltage Release: no
Number of Poles: 3
Position of Connection for Main Circuit: Front
Actuating Element Design: Rotary Knob
Complete Device with Protection Unit: yes
Integrated Motor Drive: no
Optional Motor Drive: no
Protection Class (IP): IP20

The MS132-T transformer protection switch with thermal and electromagnetic protection represents a compact and powerful series with high short-circuit breaking capacity for transformer protection up to 25 A with a module width of 45 mm. In this device, the primary side transformer rated current is thermally monitored by adjusting the current scale. The short-circuit release occurs when the 20-fold device rated current is reached. The temperature-compensated device features a rotary knob operation with a clear switching position indicator I/TRIP/0. Additionally, the MS132-T has a short-circuit indicator. The rotary knob can be directly locked in the 0 position using a padlock. Auxiliary, signal, and short-circuit alarm contacts, as well as under-voltage and operating current releases, can be mounted without tools. Single-phase feed blocks up to 25 mm² and phase connectors support the wiring of single-phase transformers. EAN: 4013614485022.
