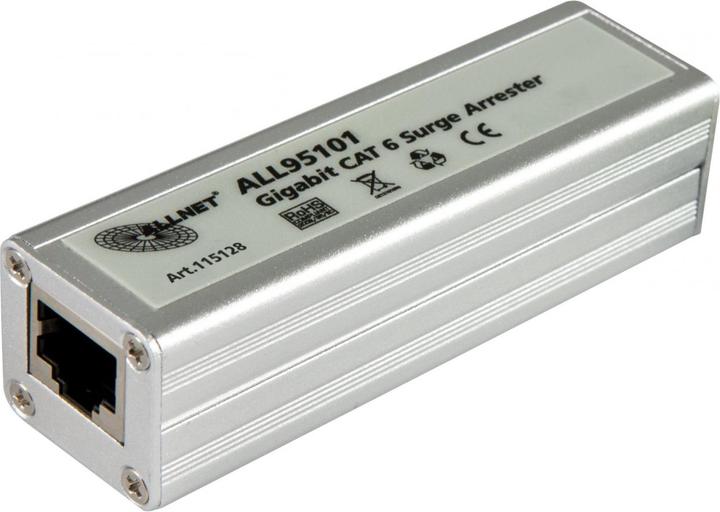

Allnet ALL95101 TP Cat 6 / ADSL / VDSL / ISDN Lightning / Surge Protection
More than 10 items in stock at supplier
Product details

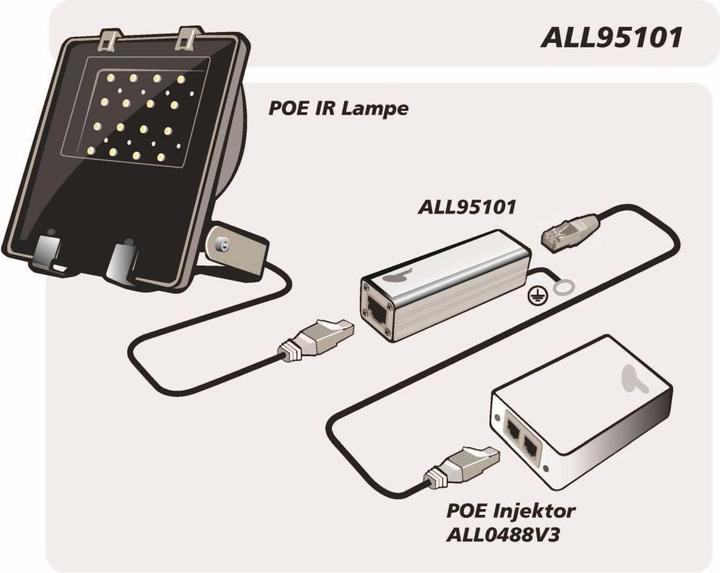

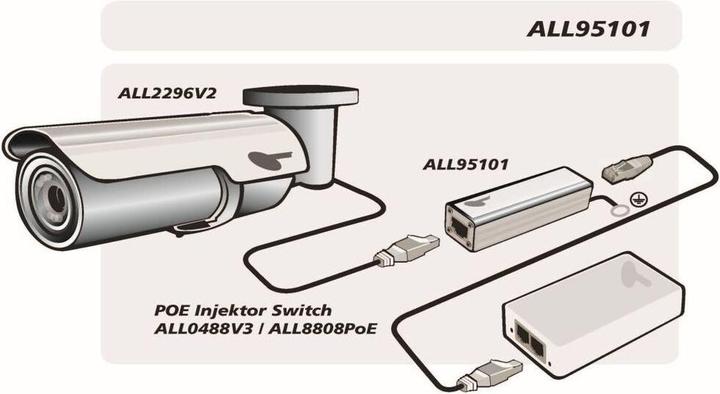

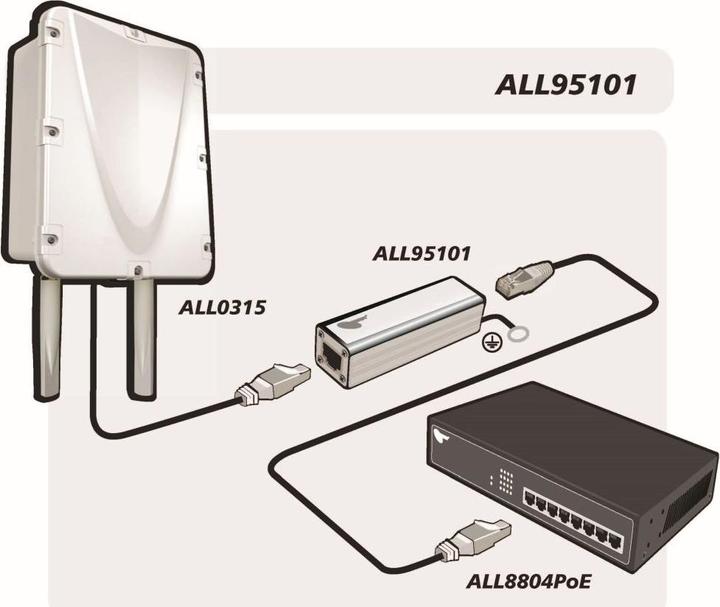

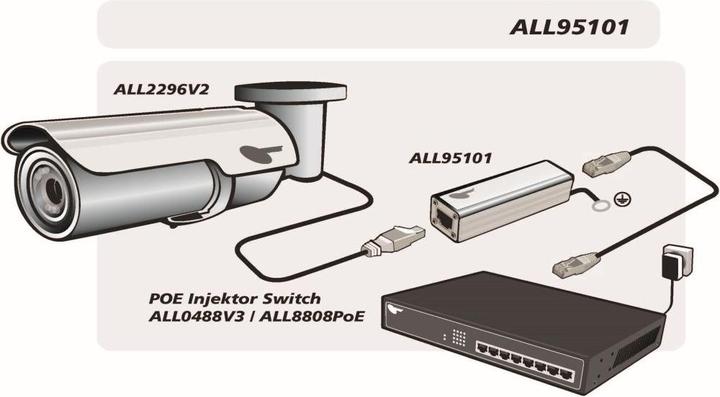

Description The ALLNET ALL95101 offers an affordable and reliable protection against damage to sensitive devices. The ALLNET surge protector, housed in a compact case, is simply plugged in between the network cable and the device to be protected. Additionally, the ALL95101 can also be used to protect ADSL, VDSL, ISDN, and analog lines from surges. It immediately takes over the protection of the device against overvoltage without any configuration. Together with a regular surge protector and potential equalization, it can permanently safeguard infrastructure in security-sensitive areas. Reliable protection against surges for all devices with network connections. Plug and play installation for switches, routers, firewalls, laptops, PCs, servers, televisions, and multimedia devices. Technical specifications: Network connection 2x RJ45 10/100/1000Mbps, PoE capability IEEE802.3af, at, LTPoE++ up to 90W, discharge capacity 10kA (8/20µs), 100A (10/1000µs), ignition voltage 90VDC.
Number of conductors | 8 x |
Test class | Type 2 |
Item number | 30453280 |
Manufacturer | Allnet |
Category | Surge protection |
Manufacturer no. | ALL95101 |
Release date | 19.4.2021 |
External links |
Colour | Silver |
Exact colour description | Silver |
Material group | Metal |
Material | Metal |
Number of conductors | 8 x |
Lightning impulse current | 0.10 kA |
Nominal voltage | 90 V |
Protection level | 90 V |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.08 m |
Width | 0.03 m |
Height | 0.03 m |
Weight | 200 g |
Length | 15.90 cm |
Width | 12 cm |
Height | 3.40 cm |
Weight | 141 g |
