Alpen Twist drill HSS - MAYKESTAG

7 mm
Price in EUR including VAT, free shipping
EUR5,27/1pcs.
Delivered between Wed, 21.5. and Fri, 23.5.
Only 3 items in stock at supplier

Drill diameter

Product details

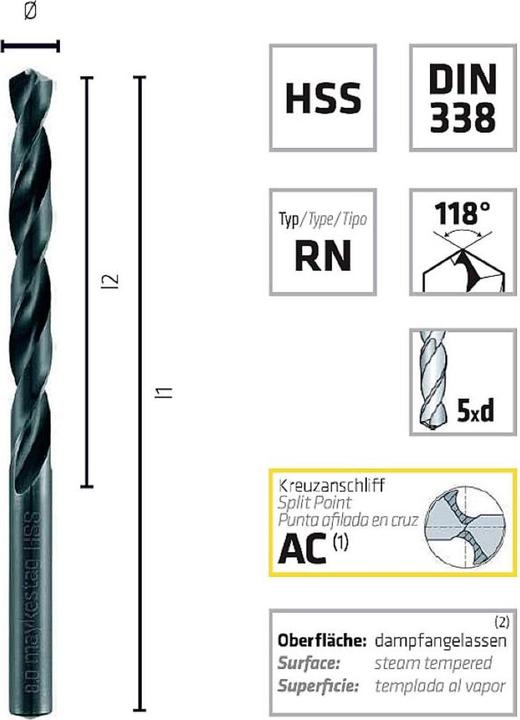

Twist drill HSS - Maykestag DIN338 RN 7.0 mm.

This precision-ground twist drill features a short, right-hand cutting design with a cylindrical shank, suitable for drilling alloyed and unalloyed steels, grey cast iron, malleable cast iron, copper alloy, nickel silver, graphite, and sintered iron. Key features include wide flutes and a reinforced core, allowing for a drilling depth nearly equal to the length of the twist and effective chip removal. The point angle is 118°, and the surface is blued from 1.0 mm. All dimensions from 4.0 mm include special grinding "AC." This industrial-quality drill is compatible with NC machines and is precise due to a modern grinding process, while also being breakage resistant due to CNC-controlled heat treatment.

Key specifications

Material application
CopperGrey cast iron
Length
10.90 cm
Drill diameter
7 mm
Metal type
Steel
Item number
6053538

General information

Manufacturer
Alpen
Category
Drill bit insert
Manufacturer no.
0060100700100
Release date
22.12.2016

Material

Metal type
Steel
Material group
Metal
Material
HSS

Drill bit properties

Drill Type
Twist Drill
Material application
CopperGrey cast iron
DIN standard
DIN 338
Suitable for
Copper-zinc alloysGraphiteGrey cast ironMalleable cast ironNickel silverSintered ironUnalloyed and alloyed steels
Suitable for
CopperIron
borehole size
7 mm
Point angle
118°
Point angle
118°

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

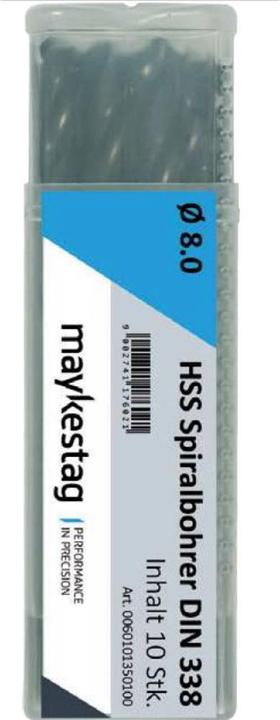

10 pieces in a commercial pack

Packaging

Items per sales unit
10 x

Product dimensions

Drill diameter
7 mm
Shaft diameter
7mm
working length
69 mm
Length
10.90 cm
Width
0.70 cm
