Berker 47703555
More than 10 pieces in stock at supplier
Colour2
Product details

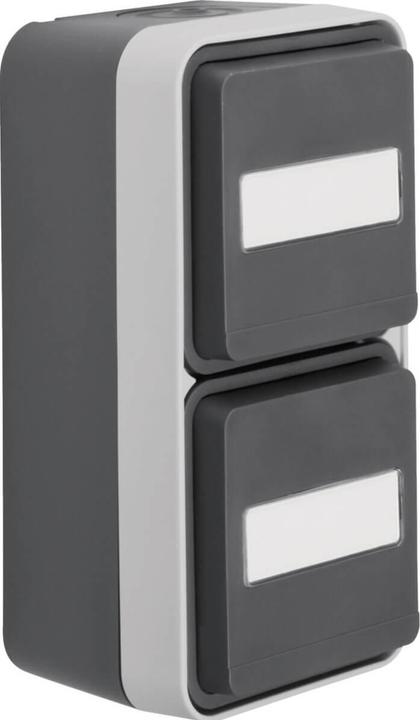

Socket with protective contact, 2-fold, vertical with hinged cover and increased touch protection, gray. This socket is suitable for vertical installation and features wired inserts with terminal blocks. It has an entry for two wires and an entry for a cable or pipe. A full-area seal under the housing base ensures the sealing of the housing back. The hinged cover closes flush and can be manually locked to achieve protection class IP55. The mounting holes in the housing are funnel-shaped and easily accessible. A Wago 2-wire connection terminal for wiring is included, as well as two snap-in places for Wago 2-wire connection terminals in the housing base. There is plenty of space for wiring under the inserts' bases (hollow base). The installation of the insert in the housing is easily done by snapping in, and the frame is securely fixed to the housing via a bayonet quick-release mechanism. The connection terminals comply with VDE 0620 and the design DIN 49440. Housing screws and hinged cover springs are made of stainless steel. Installation is surface-mounted. Material: plastic, thermoplastic, impact-resistant.
Exact colour description | Grey (RAL 7011) matt |
Socket type | CEE 7/3 |
Number of cans | 2x |
Area of use | Inside |
Mounting type | Finery |
Item number | 32453077 |
Manufacturer | Berker |
Category | Sockets |
Manufacturer no. | 47703555 |
Release date | 16.1.2023 |
External links |
Colour | Grey |
Exact colour description | Grey (RAL 7011) matt |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 2x |
Protection type (IP code) | IP55 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Finery |
Mounting type | Engagement |
connector type | Plug terminal |
Additional properties | Contact protection, Halogen-free, Hinged cover |
Smart home | Not compatible |
Requires Smart Home Hub | No |
Control type | Manual |
Configuration effort | Manual configuration |
Country of origin | Germany |
CO₂ emissions | 16,89 kg |
Climate contribution | EUR 0,42 |
Stack depth | 6.40 cm |
Length | 6.40 cm |
Width | 7.60 cm |
Height | 17 cm |
