Berker frame PWS/GL 13098989
Manufacturer: Berker
Designation: Frame PWS/GL with large cut-out
Type: 13098989
Number of units: 1
Mounting direction: vertical
Number of units horizontal: 1
Number of units vertical: 1
Number of switch inserts: 1
Flush mounting: yes
Suitable for underfloor trunking: no
Suitable for device installation trunking: yes
Suitable for recessed installation: yes
Text field/inscription area: no
Material: plastic
Material grade: thermoset
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Mounting type: clamp mounting
Width: 80.5 mm
Height: 136.5 mm
Depth: 9.5 mm
Installation width: 55.4 mm
Installation height: 111.1 mm
Diameter hole (opening): 0 mm

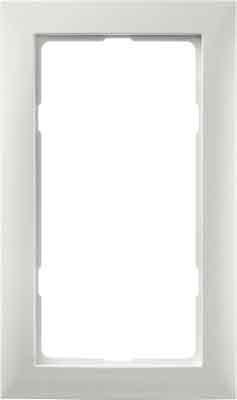

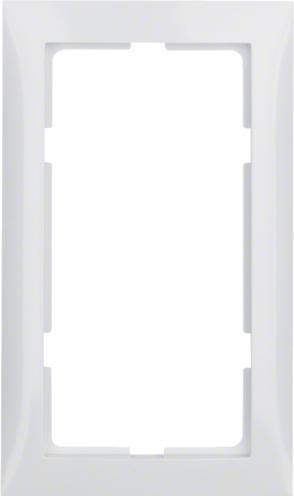

Frame with large cut-out in polar white, glossy. Designed for long push-button sensors and vertical mounting. Flush-mounted installation, standard program. Material: plastic, thermoplastic, shatterproof, halogen-free.
