Berker frame 2f. pws/gl 10228919
Manufacturer: Berker
Designation: Frame 2f. pws/gl
Labeling field type: 10228919
Number of units: 2
Mounting direction: Horizontal
Number of units horizontal: 2
Number of units vertical: 1
Number of switch inserts: 2
Flush mounting: Yes
Suitable for underfloor trunking: No
Suitable for device installation trunking: Yes
Suitable for recessed installation: Yes
Text field/labeling area: Yes
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Glossy
Color: White
RAL number (similar): 9010
Transparent: No
With hinged cover: No
Protection class (IP): IP20
Mounting type: Clamp mounting
Width: 151.5 mm
Height: 80.5 mm
Depth: 9.5 mm
Installation width: 56 mm
Installation height: 56 mm
Diameter hole (opening): 0 mm

Berker Frame 2f. pws/gl 10228919: More details

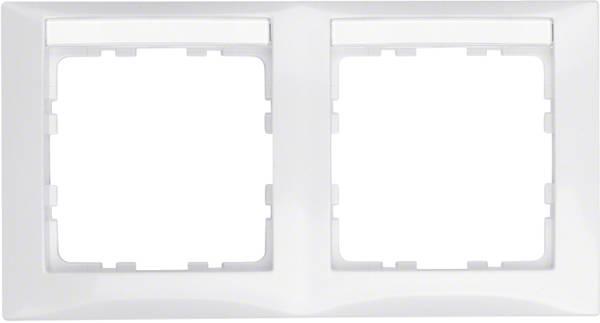

Frame with labeling field, 2-gang horizontal, polar white, glossy. Cover frame with labeling field. For horizontal mounting. For use with polar white center plates. Flush-mounted installation, standard program, 2-gang. Material: Plastic, thermoplastic, unbreakable, halogen-free. EAN: 4011334277019.
