Berker frame 4f. ws/gl 10148982

Manufacturer: Berker
Designation: Frame 4f. ws/gl
Type: 10148982
Number of units: 4
Mounting direction: Horizontal and vertical
Number of units horizontal: 4
Number of units vertical: 4
Number of switch inserts: 4
Flush mounting: Yes
Suitable for underfloor trunking: No
Suitable for device installation trunking: Yes
Suitable for recessed installation: Yes
Text field/inscription area: No
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Glossy
Color: White
RAL number (similar): 1013
Transparent: No
With hinged cover: No
Protection class (IP): IP20
Mounting type: Clamp mounting
Width: 294 mm
Height: 80.5 mm
Depth: 9.5 mm
Installation width: 56 mm
Installation height: 56 mm
Diameter hole (opening): 0 mm

Berker Frame 4f. ws/gl 10148982: More details

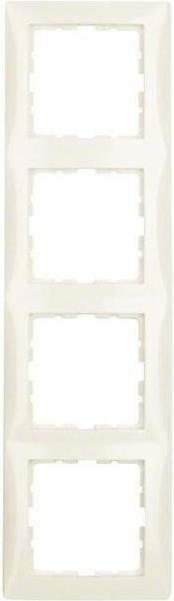

Frame 4-gang p.1 white, glossy. Cover frame for vertical and horizontal mounting. For use with polar white center plates. Flush-mounted installation, standard program, 4-gang. Material: Plastic, thermoset, halogen-free. EAN: 4011334276906.
