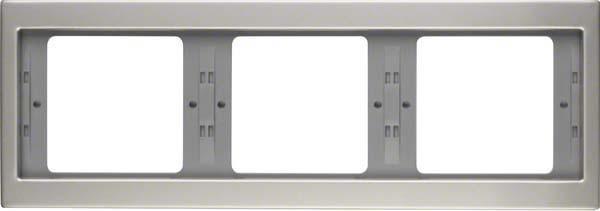

Berker Frame 3f. eds 13737004

Manufacturer: Berker
Designation: Frame 3f. eds horizontal
Type: 13737004
Number of units: 3
Mounting direction: horizontal
Number of units horizontal: 3
Number of units vertical: 1
Number of switch inserts: 3
Flush mounting: yes
Suitable for underfloor trunking: no
Suitable for device installation trunking: yes
Suitable for recessed installation: yes
Text field/inscription area: no
Material: metal
Material grade: stainless steel
Halogen-free: yes
Antibacterial treatment: no
Surface protection: other
Finish: matt
Color: stainless steel
RAL number (similar): 9022
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Mounting type: clamp mounting
Width: 229 mm
Height: 80.5 mm
Depth: 9.9 mm
Installation width: 71.5 mm
Installation height: 56.5 mm
Diameter hole (opening): 0 mm

Frame 3f. horizontal, K.5, stainless steel, metal matted. Cover frame for horizontal mounting. For use with stainless steel center plates. Flush-mounted installation, surface program, 3-gang. Material: plastic, thermoplastic, stainless steel coated, halogen-free. EAN: 4011334281993.
