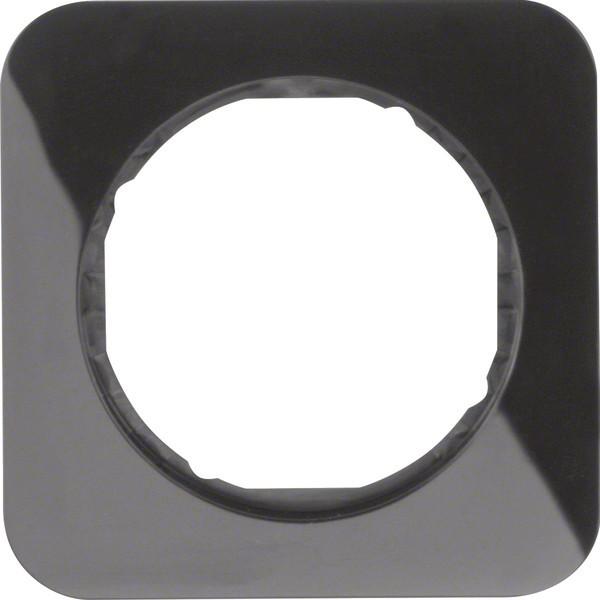

Berker Frame sw/gl 10112145
Manufacturer: Berker
Description: Frame sw/gl single, round
Type: 10112145
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: black
RAL number (similar): 9005
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK05
Mounting type: clamp mounting
Width: 80.7 mm
Height: 80.7 mm
Depth: 9.9 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 52 mm

Berker Frame sw/gl 10112145: additional details frame single R.1 black, glossy. Cover frame for vertical and horizontal mounting, (W x H) 80.7 x 80.7 mm. For use with black central pieces. Flush-mounted installation, surface/design program, single. Material: plastic, thermoplastic, shatterproof, halogen-free.
