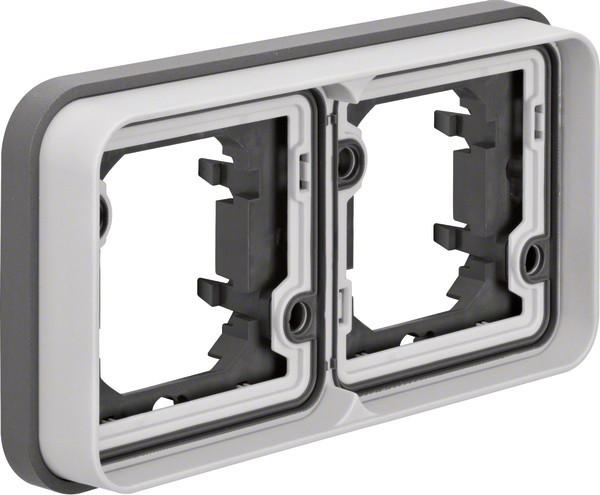

Berker Frame 2fold 13293505

Manufacturer: Berker
Description: 2-fold horizontal frame light gray
Type: 13293505
Number of units: 2
Mounting direction: horizontal
Number of horizontal units: 2
Number of vertical units: 1
Number of modules horizontal (in modular construction): 2
Number of modules vertical (in modular construction): 1
Number of switch inserts: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: gray
RAL number (similar): 7035
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK05
Mounting type: clamp/screw fastening
Width: 83 mm
Height: 224 mm
Depth: 38 mm
Installation width: 71 mm
Installation height: 71 mm
Diameter of hole (opening): 0 mm

Berker Frame 2fold 13293505: additional details
2-fold horizontal frame for flush-mounted installation, with seal W.1 gray. 2-fold horizontal frame for flush-mounted installation, light gray for horizontal mounting, with mounting adapter and seal for screwing onto a flush-mounted or hollow wall box. Only when installed with a modular insert AP/UP from the W.1 product line will the protection degree IP55 be achieved.
EAN: 4011334405122.
