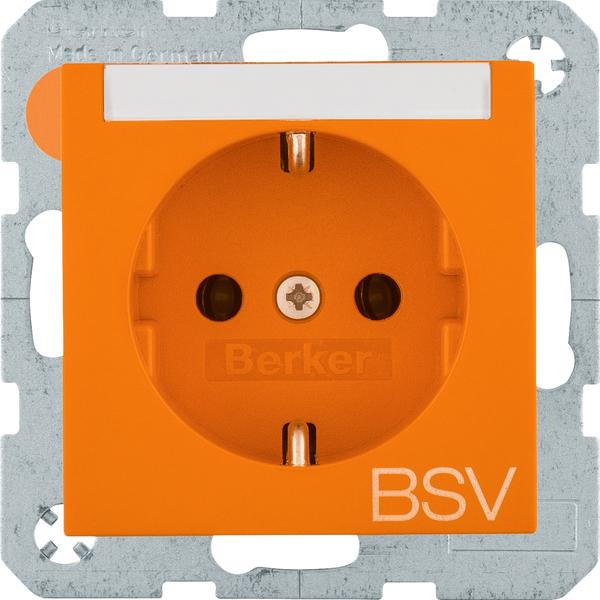

Berker socket outlet Schuko 47508924
Manufacturer: Berker
Designation: Socket outlet Schuko
Type: 47508924
Version: Schuko
Protective contact: Yes
Protective earth contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Type of USB power supply: Other
Number of units: 1
Number of phases: 1
Imprint/marking: Other
Type of connection: Plug-in terminal
With hinged cover: No
With increased contact hazard protection: No
Text field/labelling area: Yes
Colour: Orange
RAL number (similar): 2003
Metallic colour: No
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function light: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50-60 Hz
Suitable for protection class (IP): IP20
Impact resistance: IK02
Device width: 71 mm
Device height: 71 mm
Device depth: 41.6 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Min. device socket depth: 31 mm
Compatible with Amazon Alexa: No
IFTTT support available: No
For "difficult conditions" (according to VDE): No

Further details: Socket outlet with earth contact, imprint BSV, labelling field, glossy orange. Socket outlet with earthing contact with imprint and labelling field, with plug-in terminals designed and approved as connection terminals according to VDE 0620, with one-piece earthing bracket. Flush-mounted installation, standard range. Material: Plastic, halogen-free.
EAN: 4011334498377.
