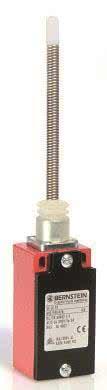

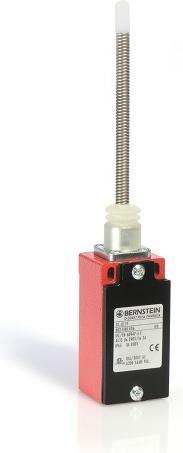

Bernstein Limit Switch GC-SU1 FF

Manufacturer: Bernstein
Designation: Limit Switch
Type: GC-SU1 FF
Width of the sensor: 36 mm
Height of the sensor: 32.5 mm
Length of the sensor: 205 mm
Rated operating current Ie at AC-15, 230 V: 3 A
Switching function: Snap action
Electronic output: no
Forced opening: no
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Enclosure design: Rectangular
Material of the enclosure: Metal
Design of the actuating element: Spring rod
Orientation of the actuating element: other
Design of the electrical connection: Cable entry (metric)
With status indicator: no
Suitable for safety functions: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -30 to 80 °C
Protection class (IP): IP65

The metal-encapsulated limit switch is suitable for almost any application in the field of safety applications and position detection due to its compact design. The switch offers various mounting advantages, such as screw connections with self-lifting clamping disks, captive cover screws, and an easily replaceable switching system through a snap fastening. Optional versions with custom cables and connectors are also available.
EAN: 4024337004933.
