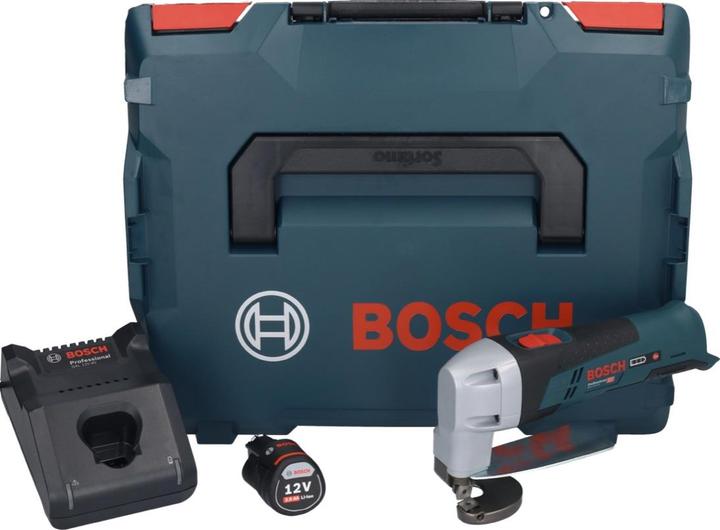

Scope of delivery:

• 1x Bosch GSC 12V-13 cordless sheet metal shear

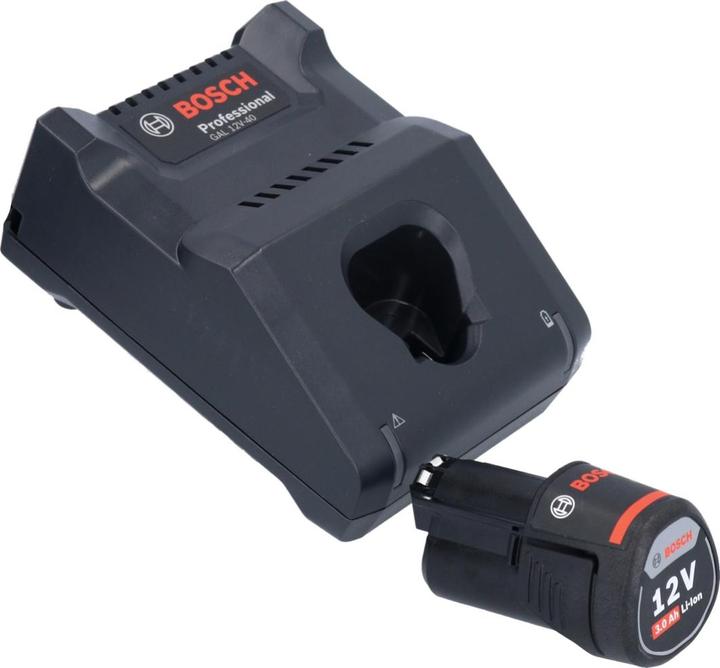

• 1x Bosch GBA 12V 3.0 Ah battery
• 1x Bosch GAL 1230 CV single-voltage fast charger
• 1x L-BOXX insert for tool and charger
• 1x hex key

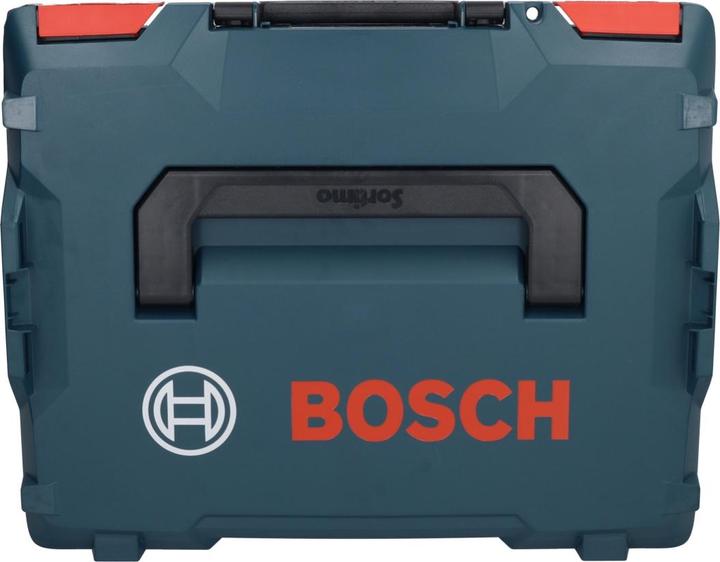

• 1x L-BOXX 102

Product description:

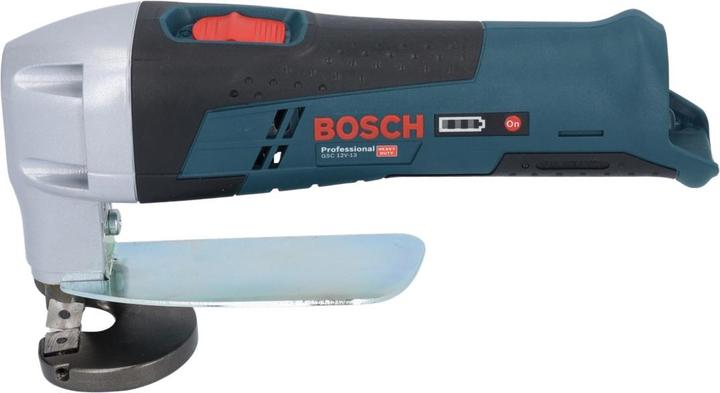

This power tool is designed for cutting sheets without material loss. It is suitable for both curved and straight cuts. The sheet metal shear is up to 4 times faster for straight and curved cuts than conventional manual sheet metal shears without requiring much effort. Its compact design and low weight (only 1.4 kg) allow for comfortable and fatigue-free working. Nevertheless, the tool is extremely powerful and can effortlessly make cuts up to 1.3 mm in steel or up to 2.0 mm in aluminum. The upper and lower blades are identical, each having four cutting edges that can be swapped against each other. Timely rotation or replacement of the blades ensures sharp working tools, resulting in good cutting performance and preserving the power tool. The tool can be operated with compatible 10.8 or 12 V batteries from Bosch. The low weight of the battery further enhances comfort, especially for overhead applications. The asymptotic charging algorithm of the charger allows for fast charging times.

Technical specifications:
Battery voltage: 12 V
Minimum curve radius: 15 mm
No-load stroke rate: 3,600 min-1
Max. cutting capacity steel (800 N/mm²): 0.6 mm
Max. cutting capacity steel (600 N/mm²): 0.8 mm
Max. cutting capacity steel (400 N/mm²): 1.3 mm
Max. cutting capacity aluminum (200 N/mm²): 2.0 mm
Dimensions (LxH): 256x131 mm
Weight (with battery): 1.4-1.6 kg
Sound pressure level: < 70 dB(A)
Uncertainty (K): < 1.5 dB
Overall vibration values: 3.5 m/s²
Uncertainty (K): 1.5 m/s²

For commercial use, please observe the construction regulations!.
