Busch-Jaeger central plate dav/sws 1758-84
Manufacturer: Busch-Jaeger
Designation: Central plate dav/sws for communication connector type 1758-84
Assembly: Basic element with housing top
Use: For data connection housing
Support ring: Yes
With dust protection: No
With hinged cover: No
Direction of outlet: Angled
Labeling field: With labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Color: Studiowhite
RAL number (similar): 9016
Transparent: No
Mounting type: Mounting with screw
Number of modules (for modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20

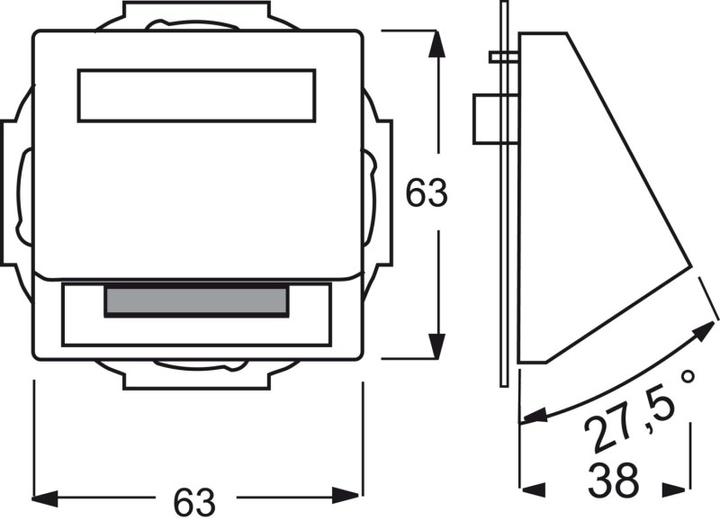

Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm

Further details: For communication connectors. With labeling field 60.2 x 10.2 mm. Without spreader. Suitable labeling software available. EAN: 4011395996546.
