Busch-Jaeger Frame
More than 10 pieces in stock at supplier
Colour
Product details

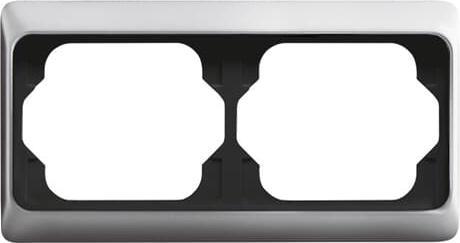

Busch-Jaeger Frame 2-fold 1722 KA-266
Manufacturer: Busch-Jaeger
Description: 2-fold frame in titanium, horizontal
Type: 1722 KA-266
Number of units: 2
Mounting direction: horizontal
Number of horizontal units: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized
Surface finish: matte
Color: Titanium
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 152 mm
Height: 81 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Diameter of hole (opening): 71 mm
Busch-Jaeger Frame 2-fold 1722 KA-266: additional details cover frame 2-fold frame horizontal, alpha titanium.
Colour | Silver |
Switch programme type | Covering frame |
Number of inlets | 2 x |
Width | 152 mm |
Item number | 21242411 |
Manufacturer | Busch-Jaeger |
Category | Accessories switch programme |
Manufacturer no. | 2CKA001754A4125 |
Release date | 21.6.2022 |
Colour | Silver |
Exact colour description | Titanium |
Material group | Metal |
Material | Metal |
Switch programme type | Covering frame |
Number of inlets | 2 x |
Mounting type | Flush-mounted |
Mounting direction | Horizontal |
Additional properties | Antibacterial |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 11 mm |
Width | 152 mm |
Height | 81 mm |
Diameter | 71 mm |
Product Safety |
