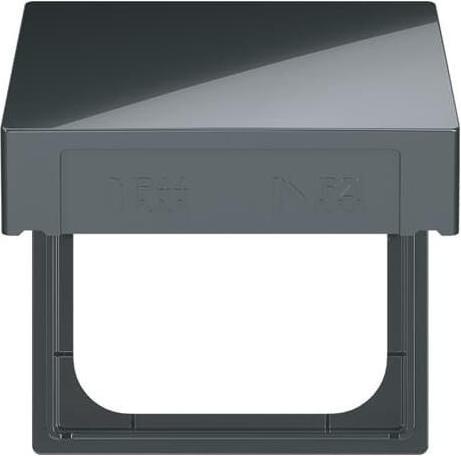

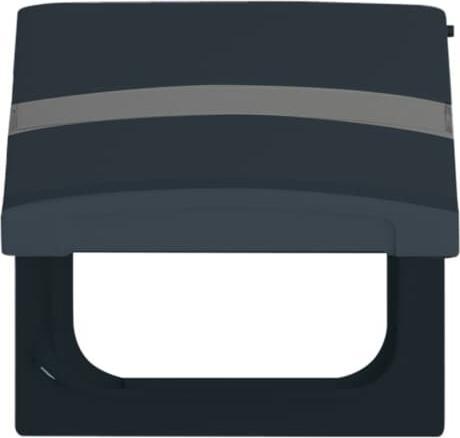

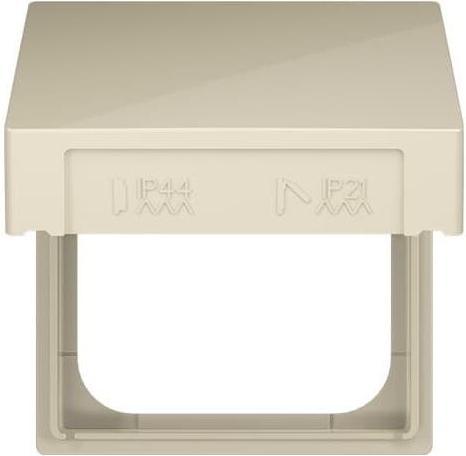

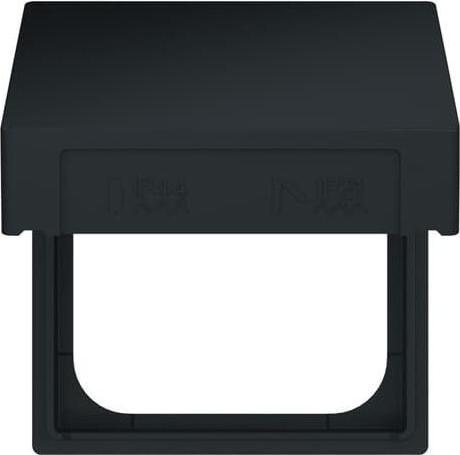

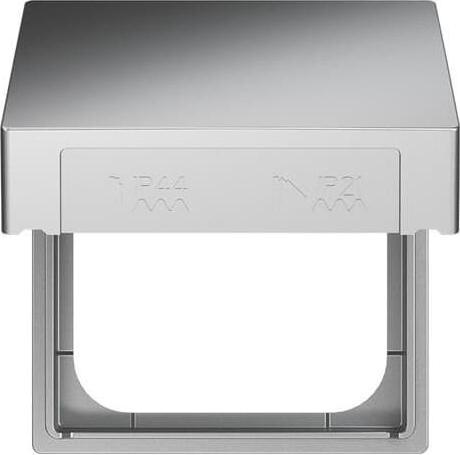

Busch-Jaeger intermediate ring with hinged cover, model 2518-WD-44M. This intermediate ring features an IP44 rating and is designed for mounting central plates from the Busch-balance® SI range. It includes a sealing ring but does not come with a central plate.

Specifications:

• Number of units: 1
• Mounting direction: horizontal and vertical
• Number of modules: 1 (both horizontal and vertical)
• Number of switch inserts: 1
• Text field/inscription area: no
• Material: plastic
• Material quality: thermoplastic
• Halogen-free: no
• Antibacterial treatment: no
• Surface protection: lacquered
• Finish: matt
• Color: white (similar to RAL 9016)
• Protection class: IP44
• Impact resistance: IK03
• Dimensions:
• Width: 63 mm
• Height: 20 mm
• Depth: 63 mm
• Installation width: 55 mm
• Installation height: 55 mm
• Diameter hole (opening): 55 mm

EAN: 4011395328057.
