Busch-Jaeger Motion detector

6 m
Ratings
Currently out of stock

Product details

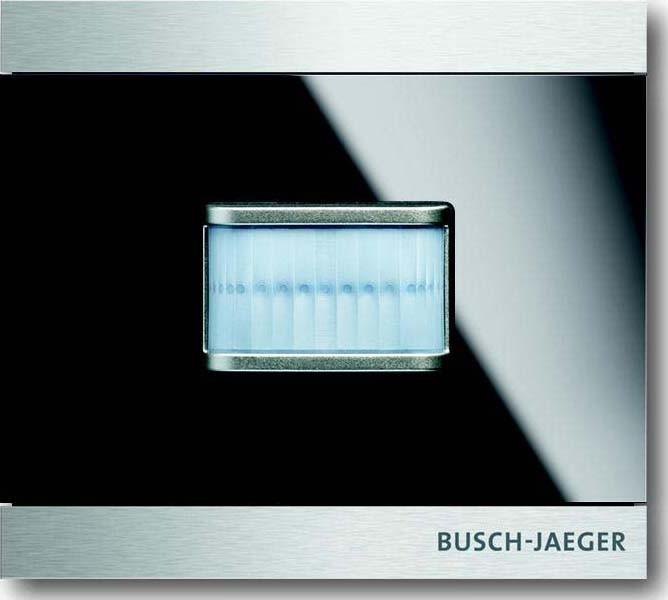

Busch-Jaeger Motion Detector Prion 6345-825-101

Manufacturer: Busch-Jaeger
Designation: Motion Detector Prion
Color: Black
Mounting Type: Flush-mounted
Material: Glass
Surface Protection: Untreated
Surface Finish: Glossy
KNX Bus System: Yes
KNX Radio Bus System: No
Radio Bus System: No
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Adjustable Sensitivity: Yes
Optimal Mounting Height: 1.1 m
Max. Range to One Side: 6 m
Max. Frontal Range: 6 m
Detection Field Diameter on Floor: 6 m
Vertical Detection Angle: 0..5 °
Horizontal Detection Angle: 0..180 °
Number of Channels: 4
Min. Depth of Device Box: 33 mm

The motion detector is equipped with up to 4 channels and can be installed in the basic carrier as 1-fold, 2-fold, or 3-fold. If needed, please refer to the current online catalog for software and description. ETS programming requires ETS 3.0f or higher and the additional PowerTool software.
EAN: 4011395116517.

Key specifications

mounting style
Flush-mounted
Motion sensor type
Motion sensor
Exact colour description
Black
coverage angles
180°
Range
6 m
Item number
32456358

General information

Manufacturer
Busch-Jaeger
Category
Motion sensors
Manufacturer no.
2CKA006310A0019
Release date
16.1.2023

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Glass
Material
Glass

Motion sensor properties

Motion sensor type
Motion sensor
Application range
Indoor
coverage angles
180°
Range
6 m
Protection type (IP code)
IP20
mounting style
Flush-mounted

Smart home features

Smart Home
Compatible
Requires Smart Home Hub
No
Communication standard
KNX

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Busch-Jaeger motion detector prion 6345-825-101

Product dimensions

Length
110 cm
Width
130 cm
Height
110 cm
