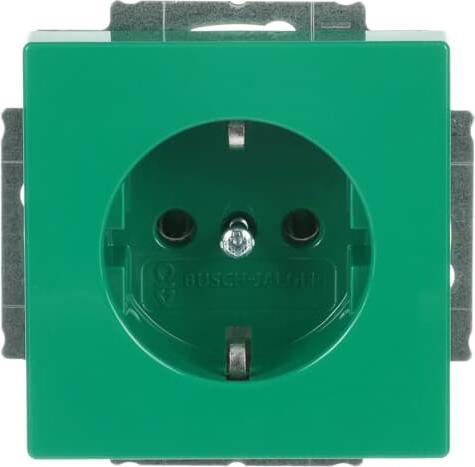

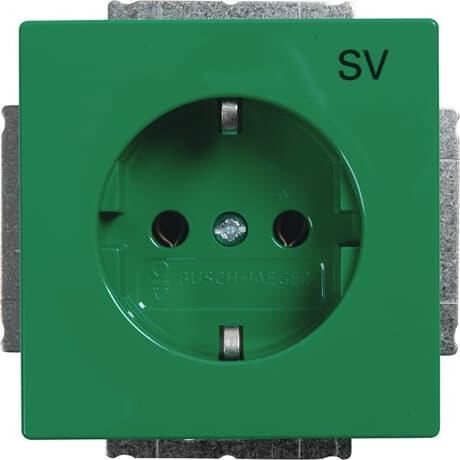

Busch-Jaeger SCHUKO® socket outlet insert with imprint 2CKA002011A6260
Colour22
Product details
The SCHUKO® socket insert with the print 2CKA002011A6260 from Busch-Jaeger is a reliable solution for indoor installations. This 2-pole socket insert allows for the connection of electrical devices and provides a secure connection through the protective contact. The installation is done flush-mounted, allowing for a clean and aesthetic integration into the wall design. The insert is made of high-quality plastic and meets the requirements of protection class IP20, making it ideal for use in dry indoor areas. With a rated current of 16 amps and a rated voltage of 250 volts, this socket insert is suitable for most household applications. The use of screw terminals ensures easy and secure wiring. The SCHUKO® socket insert is compatible with various platforms and designs from Busch-Jaeger, allowing for flexible adaptation to existing installations.
- 2-pole socket insert for secure electrical connections
- Flush-mounted installation for aesthetic wall integration
- Made from high-quality plastic for durability
- Protection class IP20, suitable for dry indoor areas
- Compatible with various Busch-Jaeger platforms and designs.
Exact colour description | Green RAL6032 |
Socket type | CEE 7/3 |
Number of cans | 1x |
Area of use | Inside |
Mounting type | Flush-mounted |
Item number | 32528496 |
Manufacturer | Busch-Jaeger |
Category | Sockets |
Manufacturer no. | 2CKA002011A6260 |
Release date | 31.1.2023 |
External links |
Colour | Green |
Exact colour description | Green RAL6032 |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection, Overcurrent protection, Overload protector, Overvoltage protection, Residual current protection, With lighting |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 16,89 kg |
Climate contribution | EUR 0,42 |
Stack depth | 3.20 cm |
Length | 7.10 cm |
Height | 3.20 cm |
