Rated current: 32A
Contact format: 3P+E
Plug/Socket: Socket
Operating voltage: 415 V
Mounting type: Cable mounting
Color: Black
IP Class: IP54, IP66
Gender: Female
Housing orientation: Straight
Connection type: Screws
Operating temperature min.: -20°C
Operating temperature max.: +40°C
Serial number: GHG 512

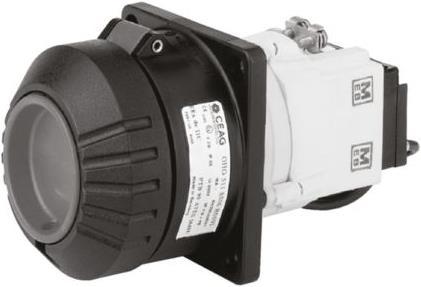

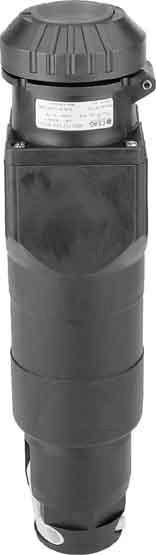

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039. CEAG coupling. CEAG Crouse-Hinds BS4343 (IEC309) plugs, sockets, and couplings are specifically designed for hazardous locations. Hazardous area versions offer mechanical advantages compared to common standard versions. The hazardous area version replaces the standard range. Patented plug and swivel connection protection up to IP66/67. Suitable for Zone 1 and Zone 2 environments and dusty Zone 21 and Zone 22 environments. CEAG standard hazardous area plugs mate with hazardous area sockets and couplings. CEAG hazardous area plugs do not mate with standard sockets and couplings. Couplings mate with enhanced and standard plugs.
