Danfoss Thin Bed Heating Mat DTIR 10m

Manufacturer: Danfoss
Description: Thin bed heating mat 150 W/m²
Type: DTIR 10m
Design: Heating foil with carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 750 W
Power: 11 W/m²
Heating conductor load: 11 W/m
Number of cold conductors: 1
Length of cold conductor: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 5 m²
Length: 10000 mm
Width: 500 mm
Thickness: 4 mm
With controller: yes
With room thermostat: no
With floor temperature sensor: no

Danfoss Thin Bed Heating Mat DTIR 10m: Additional Details

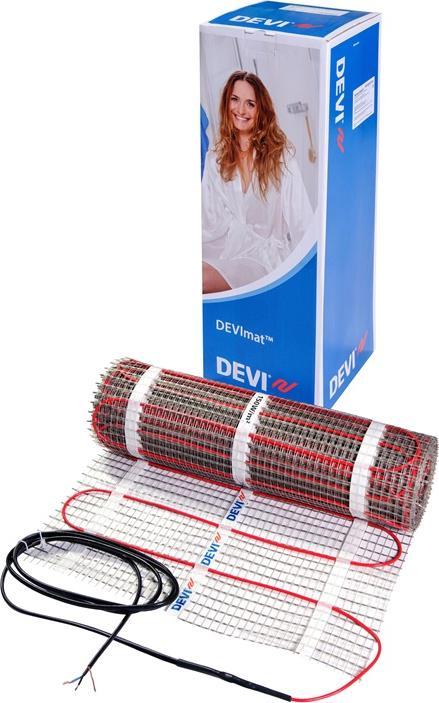

The self-adhesive thin bed heating mat with a connection cable is pre-assembled for easy installation and has been specifically designed for embedding in leveling compounds or flexible adhesives directly beneath the floor covering. Due to its low installation height of only 4.0 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required. The heating cable, with additional protective sheathing for the use of RCD protection, is mounted on a plastic mesh. The length of the connection cable is 4.0 m. Cold conductor: 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 90 °C, Specific heating output: 150 W/m², Length load: 11 W, Insulation: PVC / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Protection class: IPX7, Approval: EN 60335-2-96, Mat height: 4.0 mm, Calculation width: 50 cm, Delivery width: 48 cm, Area: 5.0 m², 0.5 x 10.0 m, Power: 750 W, EAN: 5703466169407.
