Dehn 929166 DEHNpatch up to 1GBit Surge arrester 1pc.
Price in EUR including VAT
Delivered between Tue, 7.10. and Wed, 8.10.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
free shipping
Product details

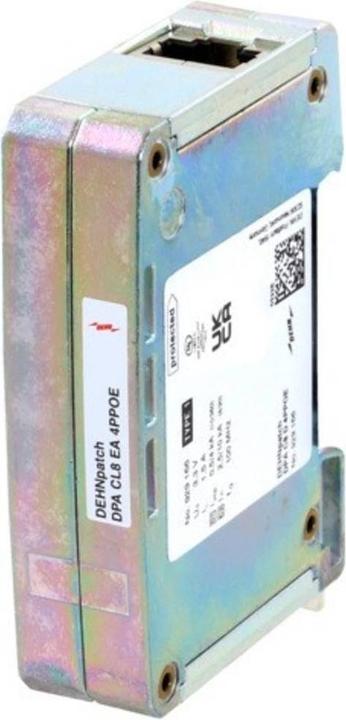

Universal, space-saving surge protector with a width of 19 mm and RJ45 connection technology for lightning protection potential equalization. Protection for applications in structured cabling up to Class D at 100 MHz, such as Industrial Ethernet, data distributors, digital camera systems, Power over Ethernet (IEEE 802.3 compliant up to 4PPoE), and generally Ethernet-based interfaces. Protection for all wire pairs through high-performance gas discharge arresters. Fully shielded adapter design with RJ45 sockets for DIN rail mounting. Includes an additional screw terminal on the housing side for optional grounding connection.
Surge protection type | Lightning current arrester |
Number of conductors | 8 x |
Mounting type | Top-hat rail |
Item number | 22685798 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 929166 |
Release date | 23.9.2022 |
Surge protection type | Lightning current arrester |
Number of conductors | 8 x |
Lightning impulse current | 4 kA |
Rated leakage surge current | 10 kA |
Nominal voltage | 3.30 V |
Protection level | 600 V |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

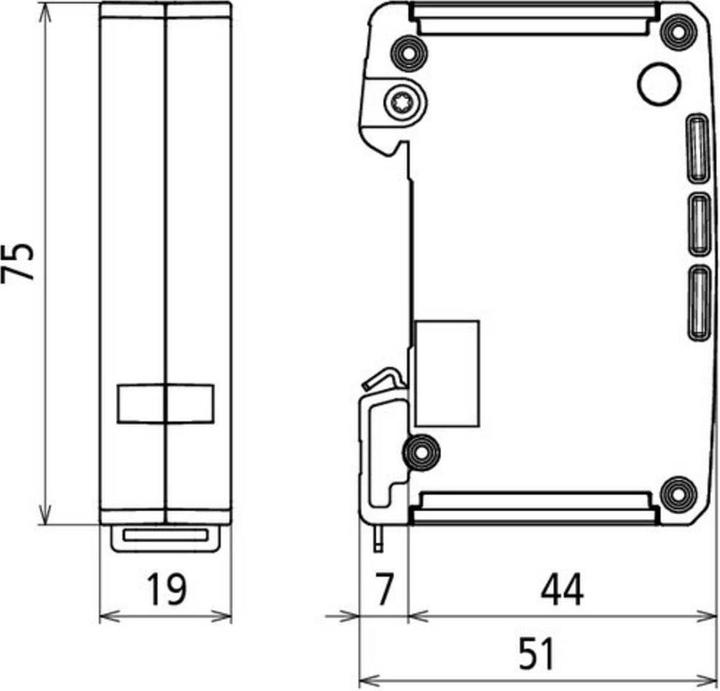

Length | 0.05 m |
Width | 0.02 m |
Height | 0.08 m |
Length | 9 cm |
Width | 6 cm |
Height | 3 cm |
Weight | 180 g |
Product Safety |
