Name: DEHNshield ZP Basic DSH ZP 909440 B2 SG TNS 255 Combination arrestor type1+2
Brand: Dehn
SKU: 22613976
Price: 305 EUR
Availability: InStock

productDetailPageQuery

Dehn

DEHN Combined Surge Arrester DSH ZP B2 SG TNS 255

Manufacturer: DEHN
Designation: Combined Surge Arrester TN-S
Type: DSH ZP B2 SG TNS 255
DC Network Type: no
IT Network Type: no
TN Network Type: no
TN-C Network Type: no
TN-C-S Network Type: no
TN-S Network Type: yes
TT Network Type: no
Other Network Type: no
Number of Poles: 4
Lightning Impulse Current (10/350 µs): 30 kA
Maximum Continuous Voltage AC: 255 V
Nominal Voltage AC: 230 V
Protection Level L-PE: 1.5 kV
Protection Level N-PE: 1.5 kV
Follow Current Extinguishing Capacity: 25 kA
Specific Energy (W/R): 14.06 kJ/Ohm
Max. Overcurrent Protection Device for Stub Wiring (Fuse): 160 A
Max. Overcurrent Protection Device for V-Wiring (Fuse): 160 A
Mounting Type: Busbar
Max. Conductor Cross-Section Solid (Single/Multi-Wire): 25 mm²
Remote Signaling: no
Device Signaling: optical
Test Class: Type 1 and 2 and 3
Integrated Pre-Fuse: no
Energetically Coordinated Protective Effect to End Device: yes
Voltage-Switching Spark Gap Technology: yes
Overcurrent Protected Voltage Tap: yes
Protection Class (IP): IP30

DEHN Combined Surge Arrester DSH ZP B2 SG TNS 255: additional details

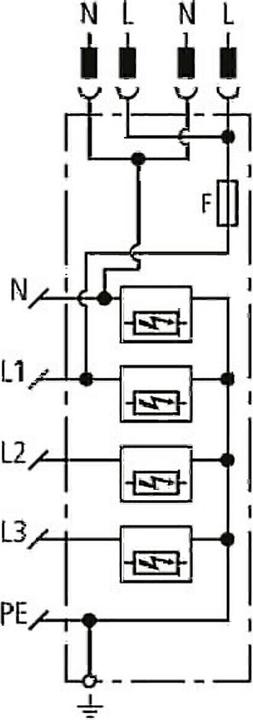

Tested combined surge arrester Type 1 + Type 2 + Type 3 according to DIN EN 61643-11 for TN-S systems (4+0 circuit) including overcurrent protected 230 V power supply (N and L) including replacement fuse for RfZ / APZ according to VDE-AR-N 4100, completely tool-free installation through Click+Power connection technology for the 40 mm busbar system and Push-in grounding terminal. Designed for use in the main power supply system according to DIN VDE 0100-443 in buildings (also with overhead line supply, without external lightning protection system). A suitable cover clip according to DIN VDE 0603-1 for any commercially available meter panel, plus 2 x socket and 2 x plug (without connection cables) for wiring the intelligent metering system according to VDE-AR 4100 is included in the delivery.
EAN: 4013364409866.

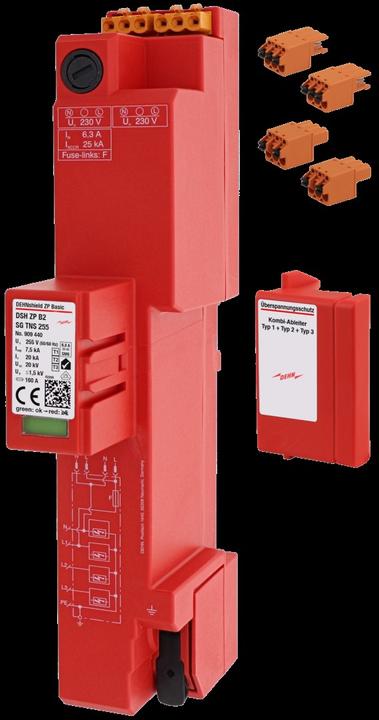

Actual product image Dehn DEHNshield ZP Basic DSH ZP 909440 B2 SG TNS 255 Combination arrestor type1+2
