Dehn DR M 2P 255 SN1802
Price in EUR including VAT, free shipping
Delivered between Tue, 27.5. and Sat, 31.5.
Only 1 item in stock at supplier
Only 1 item in stock at supplier
Product details

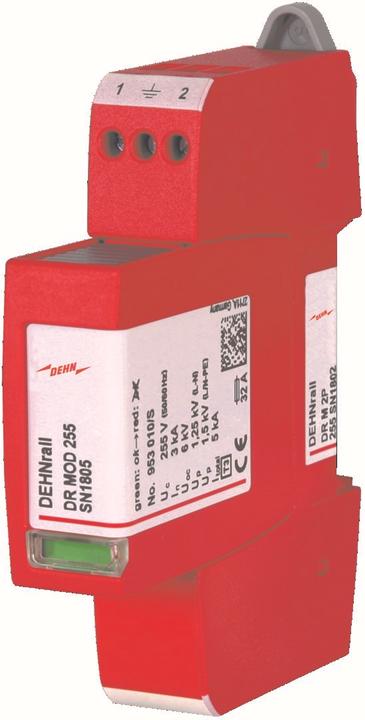

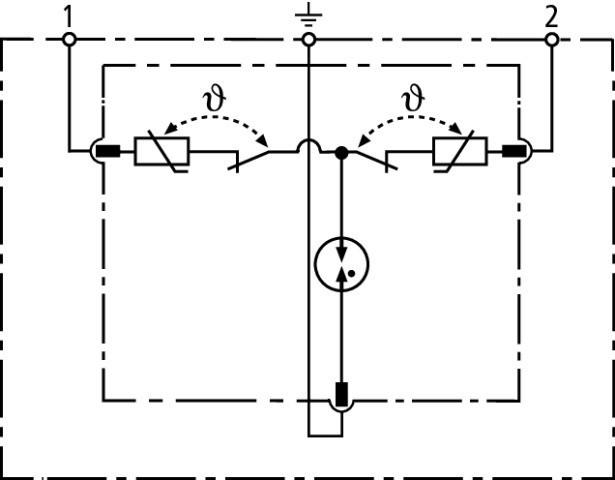

Two-pole surge arrester DEHNrail modular, Type 3 according to EN 61643-11, consisting of a base element and a plugged protection module. High discharge capacity due to a powerful combination of zinc oxide varistor and spark gap. Designed to protect the power supply of industrial electronics devices from transient overvoltages in control cabinets. Suitable for use in lightning protection zone concepts at interfaces 1, 2, and higher.
Surge protection type | Surge arrester |
Number of conductors | 2 x |
mounting style | Top-hat rail |
Test class | Type 3 |
Item number | 22933606 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 953228 |
Release date | 24.10.2022 |
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Lightning impulse current | 3 kA |
Rated leakage surge current | 3 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Romania |
CO₂-Emission | |
Climate contribution |
