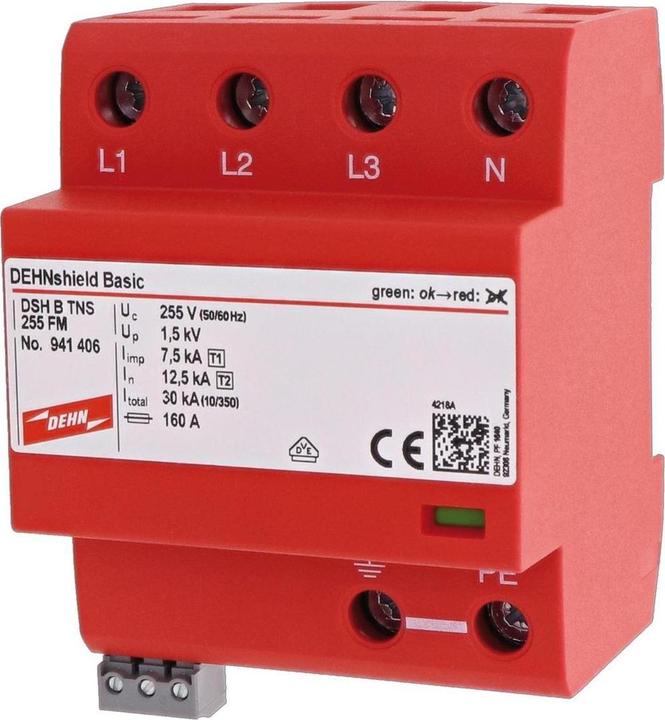

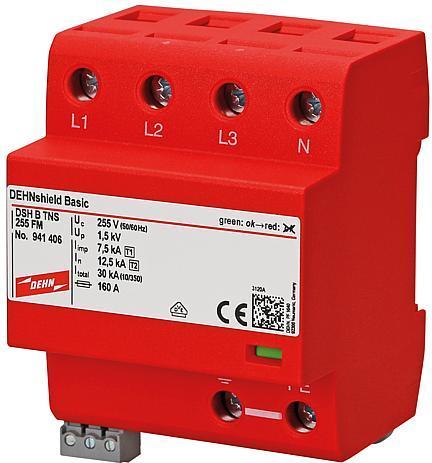

Dehn SOEHNE Combination arrestor shield DSH TNS 255 FM TNS
Price in EUR including VAT
Delivered between Tue, 17.3. and Wed, 25.3.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
free shipping
Product details
Multi-pole DEHNshield Basic, type 1 + type 2 spark-gap based arrester according to EN 61643-11. Space-saving spark gap technology with only 1 TE per pole enables compact design. For protection of residential buildings during retrofitting or renovation. Enables end device protection. Meets all requirements of DIN VDE 0100-534 and DIN VDE 0100-443. Can be used directly at the supply point of the electrical system.
Surge protection type | Combination arrester |
Number of conductors | 4x |
Mounting type | Top-hat rail |
Test class | Type 1 |
Item number | 13050819 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941406 |
Release date | 7.4.2020 |
Surge protection type | Combination arrester |
Number of conductors | 4x |
Lightning impulse current | 30 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 13,12 kg |
Climate contribution | EUR 0,34 |
Length | 0.12 m |
Width | 0.07 m |
Height | 0.09 m |
Weight | 430 g |
Product Safety |
Length | 12 cm |
Width | 9 cm |
Height | 10 cm |
Weight | 480 g |
