Devi Thin Bed Heating Mat Set 140F1702

Manufacturer: Devi
Description: Thin Bed Heating Mat Set 0.5 x 4.0
Type: 140F1702
Design: Heating cable with carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 0-300 W
Power: 150 W/m²
Heating conductor load: 11 W/m
Number of cold conductors: 1
Length of cold conductors: 4000 mm
Suitable for wet rooms: yes
Suitable as surface heating: no
Suitable as roof heating: no
Area: 2 m²
Length: 4000 mm
Width: 500 mm
Thickness: 4 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: no

Additional details:

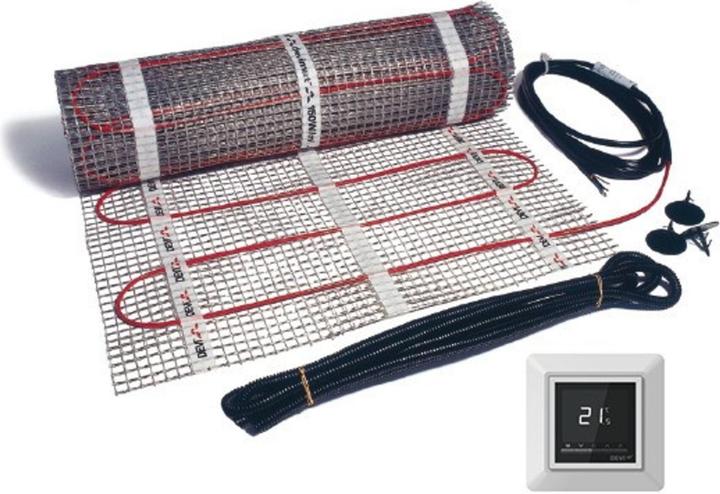

Thin bed set with Opti clock thermostat, flexible sensor protection tube DN10, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection cable is pre-assembled for installation and has been specifically designed for embedding in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 4 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required. The heating cable with additional protective sheath for the use of RCD protection is applied to a plastic mesh. The length of the connection cables is 2.3 m. Cold conductor: 1 x 2.3 m, 2 x 1.0 mm², Voltage: 230 V, Rated limit temperature: 90 °C, Specific heating power: 150 W/m², Length load: 11 W, Insulation: PVC free of lead / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 4 mm, Protection class: IPX7, Approval: IEC 60335-2-96, Area: 1.0 m², 0.5 x 4.0 m, EAN: 5703466243206.
