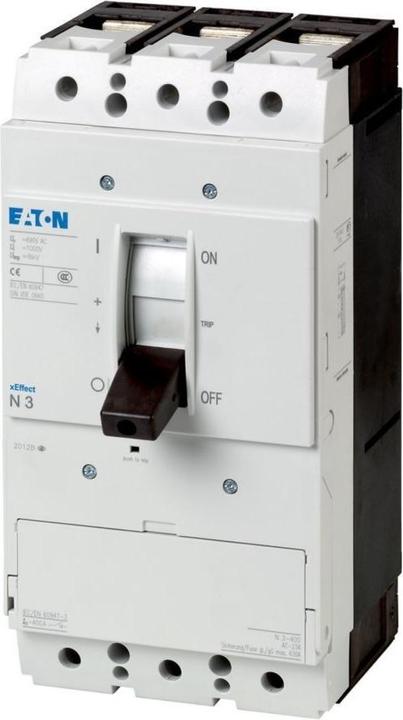

Eaton switch-disconnector PN3-400-BT
Manufacturer: Eaton
Designation: Switch-disconnector 3p, 400A
Type: PN3-400-BT
Version as main switch: Yes
Version as maintenance/repair switch: Yes
Version as safety switch: No
Version as emergency stop device: Yes
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage Ue at AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 400 A
Rated continuous current at AC-23, 400 V: 0 A
Rated continuous current at AC-21, 400 V: 0 A
Rated operational power at AC-3, 400 V: 0 kW
Rated short-time withstand current Icw: 12 kA
Rated operational power at AC-23, 400 V: 200 kW
Switching capacity at 400 V: 0 kW
Conditional rated short-circuit current Iq: 0 kA
Number of poles: 3
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Type of device: Built-in device fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: No
Suitable for front mounting central: No
Suitable for distributor installation: Yes
Suitable for intermediate: Yes
Colour of actuating element: Black
Design of actuating element: Toggle lever
Lockable: Yes
Type of connection, main circuit: Frame terminal
Protection class (IP), front: IP20

Eaton switch-disconnector PN3-400-BT: further details
Switch-disconnectors PN..-.. also fulfill the isolating characteristics for earthed IT systems. Accessories such as bridge kits, connection terminals, and door coupling rotary handles allow individual installation in a wide variety of distribution systems. PN types are not suitable for remote function.

Notes: Main switch characteristics including positive break according to IEC/EN 60204 and VDE 0113. Isolator characteristics according to IEC/EN 60947-3 and VDE 0660. Contact protection according to VDE 0160 part 100.
EAN: 4015081098620.
