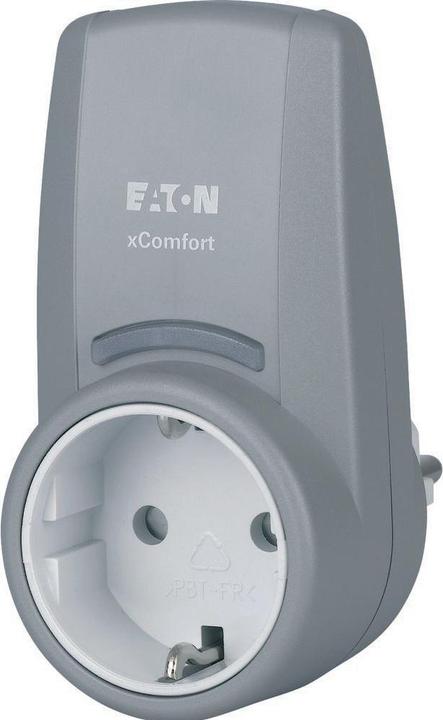

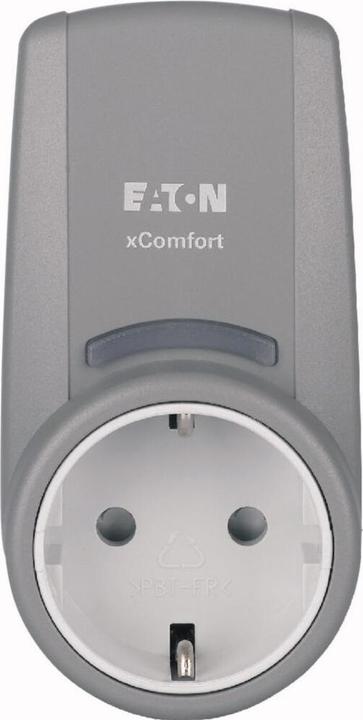

Eaton switching plug 12A CSAP-01/Fa-12E

Manufacturer: Eaton
Designation: Switching plug 12A R/L/C/LED, EMS
Type: CSAP-01/Fa-12E
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: xComfort radio bidirectional: Yes
Mounting type: Surface-mounted
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 2760 W
Max. switching capacity LED: 0 W
Output power: 2760 W
Suitable for C-load: Yes
Max. number of switching outputs: 1
Max. switching current: 16 A
Rated current: 12 A
Rated operating voltage: 196..253 V
Different phases can be connected: No
With bus coupling: Yes
Removable bus module: No
Min. depth of appliance box: 0 mm
Modular expansion option: No
Protection class (IP): IP20

Eaton switching plug 12A CSAP-01/Fa-12E: more details
Switching plug 230VAC/12A. Easy to use with wireless wall switches to control a variety of loads such as lighting, ventilation, etc. Hybrid switching technology (long life) for high switching capacity. Integrated energy metering.
