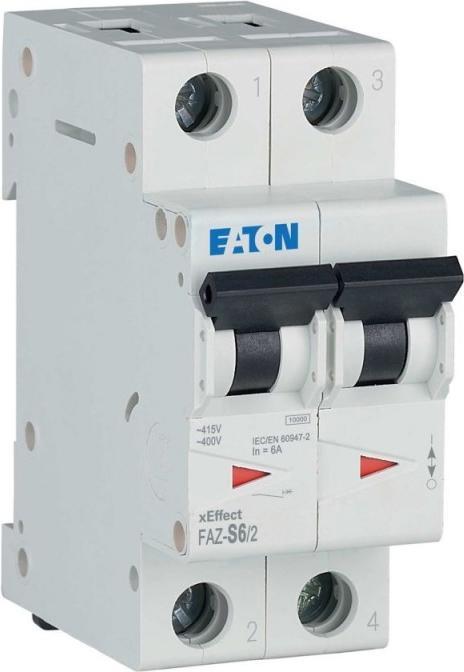

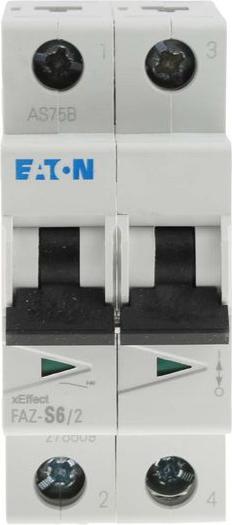

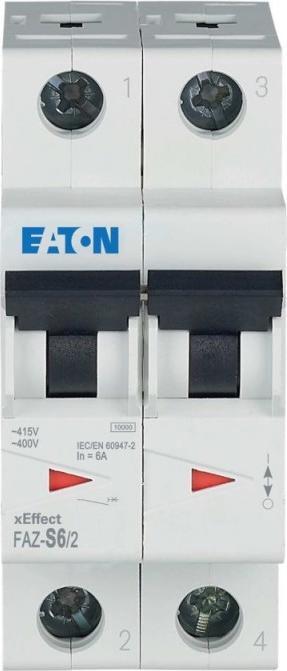

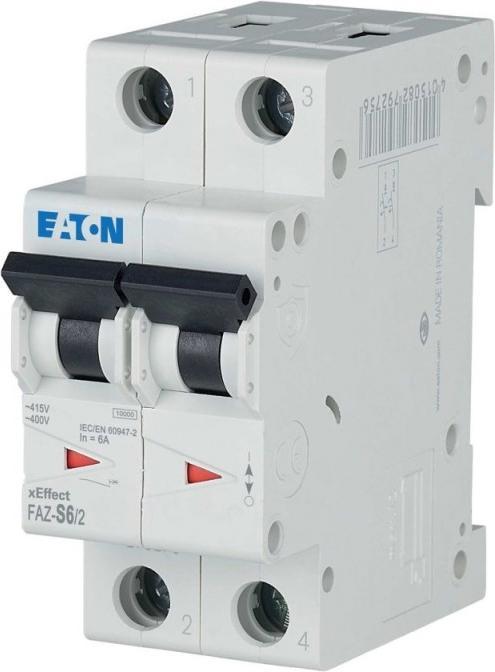

Range: xEffect
Series: FAZ
Number of poles: 2
Rated current: 6 A
Tripping characteristic: Type S
AC rated voltage: 230 V
Breaking capacity: 10 kA
Length: 80 mm
Width: 35 mm
Depth: 73.5 mm

Miniature circuit breakers from the FAZ series are available in 6 kA and 10 kA ratings. They come in single, double, and triple pole configurations, featuring thermally and magnetically tripping mechanisms for automatic operation. Designed for DIN rail mounting, these breakers offer three selectable tripping characteristics with breaking capacities of either 6 kA for low-cost applications or 10 kA for full rating.

They incorporate a double-break contact system with an internal spark quenching chamber and a storing firing mechanism with free tripping. A clear indication of contact position is provided by the frontal switching lever, and they have a large terminal clamping capacity ranging from 0.75 to 16 mm².

These circuit breakers are compatible with DIN rails and conform to EN 50 022/DIN 46277-3. They meet design provisions B, C, and S according to the new international standard IEC 898, BS/EN 60-898.

Curve B ensures comfortable tripping at currents 3 to 5 times the rated value, suitable for circuits with moderate inrush currents, such as incandescent lamps, heating loads, and residential applications. Curve C provides instantaneous tripping at currents 5 to 10 times the rated value, ideal for circuits with larger inrush currents, including industrial equipment, larger buildings, motors, and fluorescent lamps.

Curve S is designed for applications where undesirable tripping may occur with faster tripping. It features a short circuit response threshold from 13 to 17 times the rated current and an overload threshold from 1.05 to 1.3 times the rated current, making it ideally suited for the protection of control circuits where very large inrush currents are expected, such as transformers.
