Eaton Circuit breaker
Product details

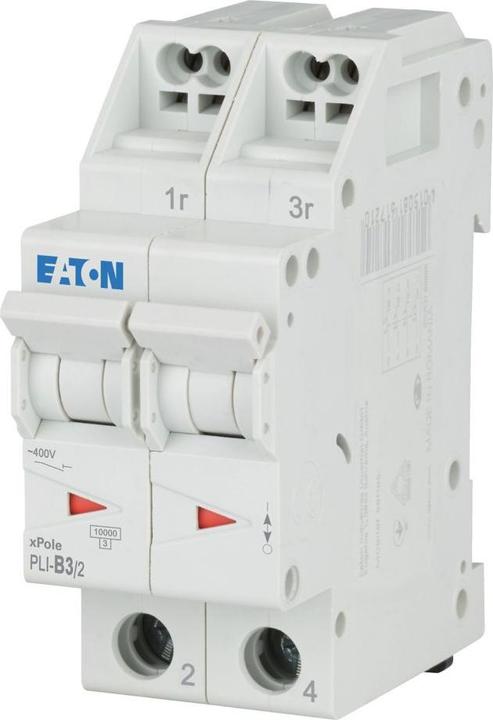

Eaton miniature circuit-breaker PLI-B3/2 Manufacturer :Eaton Designation :Miniature circuit-breaker 3 A, 2p,plug-in cl. B Type :PLI-B3/2 Mounting depth :70.5 mm Tripping characteristic :B Number of poles (total) :2 Number of fused poles :2 Rated current :3 A Rated voltage :400 V Rated insulation voltage Ui :440 V Rated impulse withstand voltage Uimp :4 kV Rated breaking capacity Icn to EN 60898 at 230 V :10 kA Voltage type :AC Rated breaking capacity Icn to EN 60898 at 400 V :10 kA Rated breaking capacity Icu to IEC 60947-2 at 230 V :0 kA Rated breaking capacity Icu to IEC 60947-2 at 400 V :0 kA Frequency :50..60 Hz Energy limitation class :3 Flush mounting :no Switching neutral conductor :no Overvoltage category :3 Pollution degree :2 Additional devices possible :yes Width in pitch units :2 Protection class (IP) :IP20 Ambient temperature during operation :-25...75 °C Connectable conductor cross-section stranded :1..25 mm² Connectable conductor cross-section solid :1..25 mm² Explosion-proof :no Eaton miniature circuit-breaker PLI-B3/2: further details miniature circuit-breaker with plug-in terminal, 3 A, 2p, characteristic: B , EAN: 4015081677276.
Circuit breaker type | Miniature circuit breaker |
Width | 2 mm |
number of poles | 2 |
Item number | 34864649 |
Manufacturer | Eaton |
Category | Residual-current device |
Manufacturer no. | 171239 |
Release date | 17.5.2023 |
Circuit breaker type | Miniature circuit breaker |
number of poles | 2 |
Tripping characteristic | B |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 440 V |
Protection type (IP code) | IP20 |
Country of origin | Romania |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Width | 2 mm |
Product Safety |
