Current range: 8 to 32 A
Number of poles: 3P
Series: PKE
Breaking capacity: 100 kA
Connection type: Screw fastening
Operating voltage: 690 V
Length: 101 mm
Width: 45 mm
Depth: 102.5 mm
Dimensions: 101 x 45 x 102.5 mm
Series: PKE

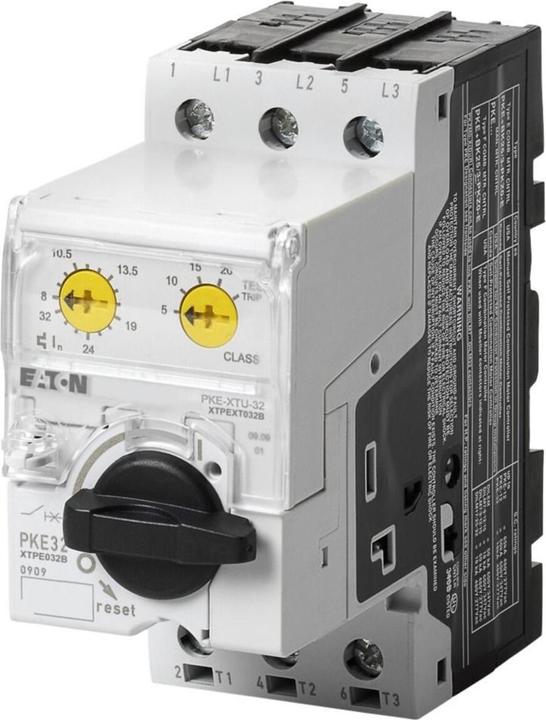

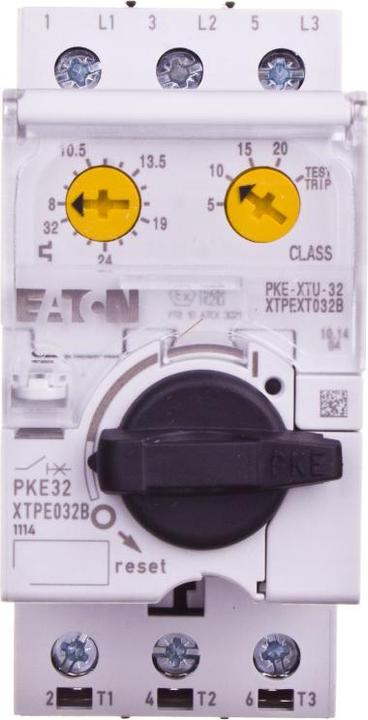

Motor protection switch PKE with electronic overload protection for maximum flexibility. Offers a compact and modular design with its plug-in control unit. Wide range of current adjustment options. Plug-in trip unit up to 65 A. Expandable with existing accessories from the xStart system. The SmartWire-DT interface enhances system availability by transmitting process-relevant data. Globally approved system components and accessories.
