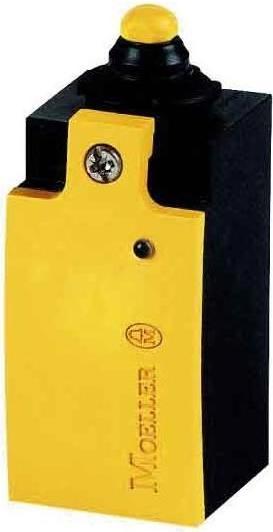

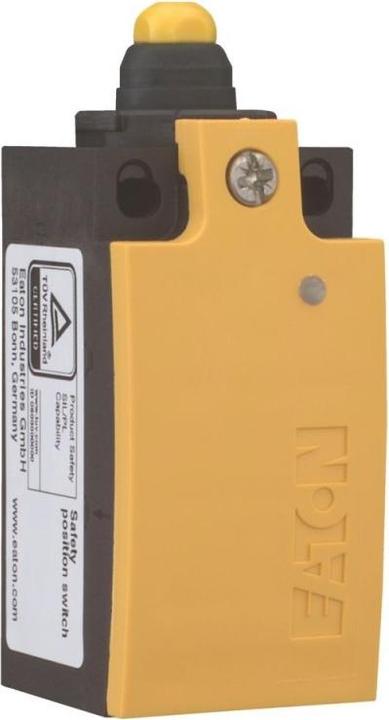

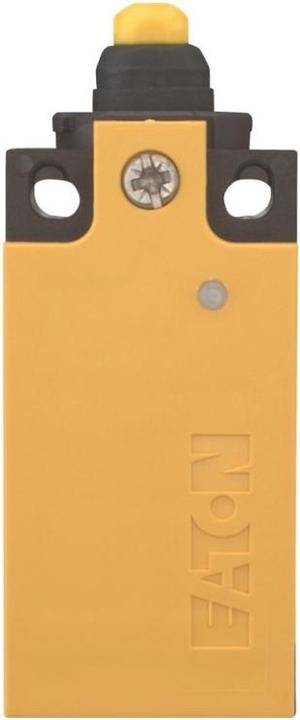

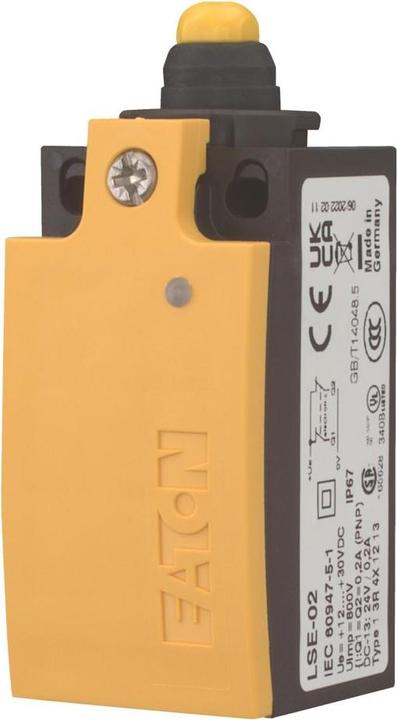

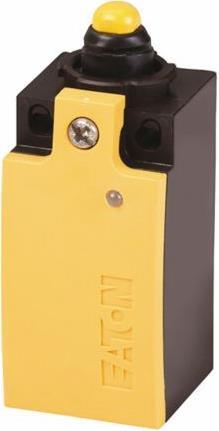

Eaton Position switch LSE-11 1S+1Ö

Price in EUR including VAT, free shipping
Ratings
Delivered between Tue, 17.6. and Fri, 20.6.
8 items in stock at supplier

Product details

Actuator type: Plunger
Contact configuration: Normally open/normally closed contact
Protection class: IP66, IP67
Current max: 200 mA
Housing material: Plastic
DC voltage max: 30V
Connection type: Spring-cage terminal
Series: LS-Titan
Contact type: Standard switching
Connection type: Screw fixing
Length: 76 mm
Width: 33.5 mm
Operating temperature max: +70°C

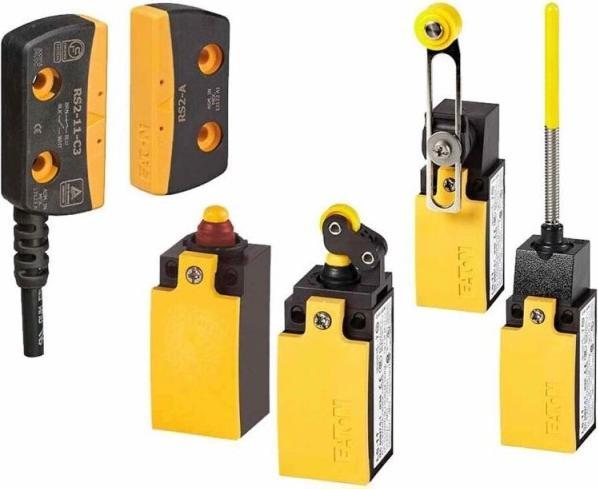

LS Titan plastic housing. Modular system conforms to EN 50047 with IP66 protection and plastic housing. Standard or snap-action contacts available in early break (EB) or late break (LB) design. Locked opposing contacts for positive actuation. Cage clamps are maintenance-free and vibration-resistant. Actuating heads are mountable in eight positions. Suitable for electronic devices. LSE versions include electronically adjustable actuation point and visible status display.

Key specifications

Nominal current
0.20 A
Number of outlets
1 x
Protection type (IP code)
IP66, IP67
Item number
9723324

General information

Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer no.
LSE-11
Release date
24.9.2018
External links
Manufacturer's site (de)

Colour

Colour
Yellow
Exact colour description
Yellow

Material

Material group
Plastic
Material
Plastic

Mobile power distributor features

Nominal current
0.20 A
Number of outlets
1 x
Area of use
Inside
Number of poles
1 x
Contact Configuration
Normally open/ normally closed
Actuator Type
Dome tappet
Protection type (IP code)
IP66, IP67

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 pcs.
Scope of delivery
1R 1Z Electronically Configured LSE-11, Position switch 1S/1Ö

Product dimensions

Width
31 mm
Length
33.50 mm
Height
61 mm
