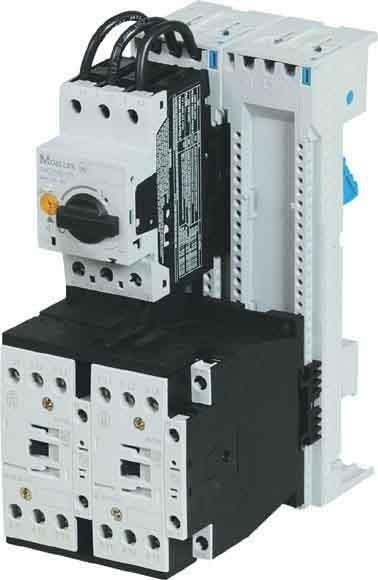

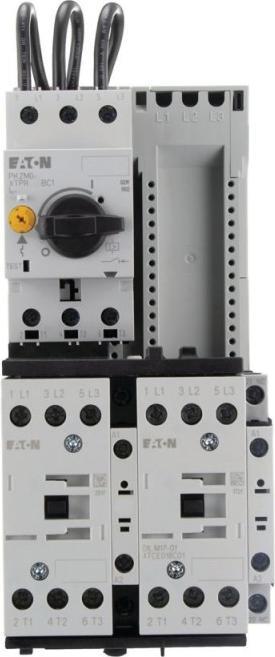

The MSC-R16M17(24VDC)BBA reversing starter from Eaton is a highly advanced motor starter combination designed for use with motors in efficiency class IE3. With a rated operational power of up to 7.5 kW at voltages of 380 V, 400 V, and 415 V, this device offers reliable control and protection for electric motors. The overload relay adjustment range is between 10 and 16 A, allowing for flexible adaptation to various applications. The operating voltage of 24 V DC ensures safe and efficient functionality. The reversing starter complies with standards and regulations according to IEC/EN 60947-4-1, VDE 0660, as well as UL 508 and CSA C 22.2 No. 14, highlighting its suitability for international use. With a compact design and an IP00 protection rating, the MSC-R16M17 is ideal for various industrial applications.

• Suitable for motors in efficiency class IE3
• Overload relay adjustment range: 10 - 16 A
• Complies with international standards and regulations
• Compatible with various rated operational powers up to 7.5 kW.
