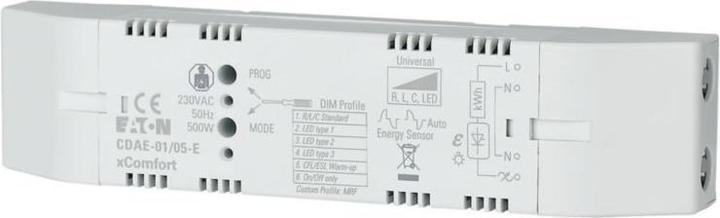

Eaton smart dimming actuator R/L/C/LED CDAE-01/05-E

Manufacturer: Eaton
Designation: Smart dimming actuator R/L/C/LED 0-500W 230VAC + ESM
Type: CDAE-01/05-E
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: xComfort radio bidirectional: Yes
Version: Dimming actuator
Mounting type: Recessed installation
Width in units: 3
With bus coupling: Yes
Bus module removable: No
Extension unit input: No
Local/manual operation: No
With LED display: Yes
Number of outputs: 1
Output power: 0-500 W
Additional power can be used: No
Load type: Universal and LED retrofit
Max. control current: 0 mA
Control current: 0 mA
Max. switching capacity LED: 200 W
Voltage: 230 V
Parallel operation possible: No
Frequency: 50 Hz
Protection class (IP): IP20
Min. depth of appliance box: 0 mm

Eaton smart dimming actuator R/L/C/LED CDAE-01/05-E: More details
Smart dimming actuator 0-500W / 230VAC with energy measurement. Suitable for dimming a variety of loads including dimmable and non-dimmable LEDs (on/off). Dims even the smallest LED load, starting from 0W! DIM profile for the best dim performance easily selectable or definable. Energy efficient. Short-circuit, overload, and overheating protection with automatic recovery. The device is installed in the junction box, installation box, or directly in the suspended ceiling.
