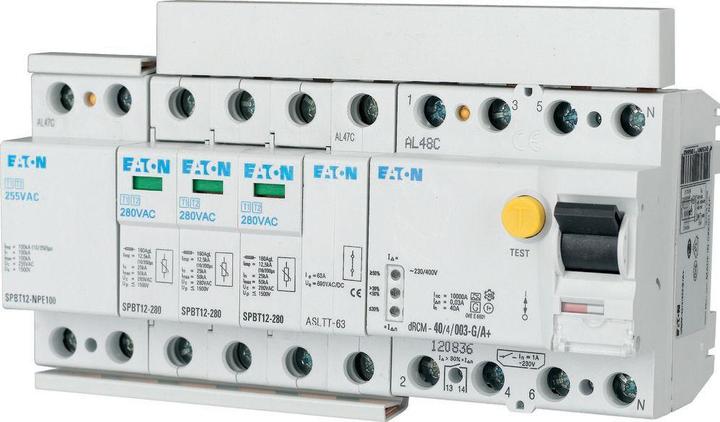

The Eaton SPBT12-280-3+NPE/BB surge protector is a highly advanced device specifically designed for use in consumer installations. It effectively protects against transient overvoltages caused by direct and indirect lightning strikes as well as switching actions. This device meets the requirements of IEC 60364-5-53 and is classified in test classes I and II according to IEC 61643-1. With a lightning protection class of III and IV according to IEC 62305, the surge protection offers a reliable solution for the safety of electrical systems. Installation is straightforward on a DIN rail, making it easy to integrate into various applications. The SPBT12-280-3+NPE/BB is designed for a nominal voltage of 280 volts and can handle lightning currents of up to 12.5 kA, making it a robust choice for surge protection.

• Protection against transient overvoltages from lightning strikes and switching actions
• Type 1 test class according to IEC 61643-1
• Lightning protection class III and IV according to IEC 62305
• DIN rail mounting for easy installation
• Maximum lightning impulse current of 12.5 kA.
