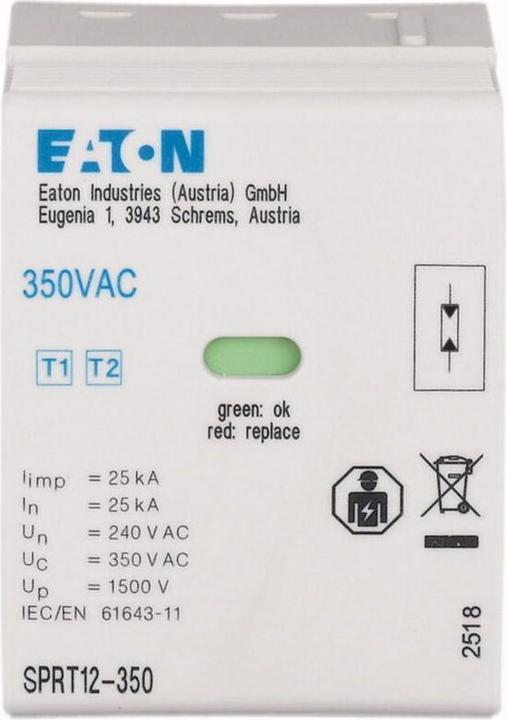

Eaton surge protection module SPRT12-350

Manufacturer: Eaton
Designation: Surge protection module Insert SPRT12
Type: SPRT12-350
Mains type DC: No
Mains type IT: No
Mains type TN: Yes
Mains type TN-C: No
Mains type TN-C-S: No
Mains form TN-S: No
Mains form TT: No
Mains form other: No
Lightning impulse current (10/350 µs): 25 kA
Maximum continuous voltage AC: 350 V
Maximum continuous voltage DC: 0 V
Rated voltage AC: 240 V
Rated voltage DC: 0 V
Max. PV voltage: 0 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Protection level L-PE: 0 kV
Protection level N-PE: 0 kV
Protection level (DC+ - DC-): 0 kV
Protection level (DC+/DC- - PE): 0 kV
Consecutive current quenching capacity: 50 kA
Specific energy (W/R): 160 kJ/Ohm
Max. overcurrent protection device Stitch arrestor
Overcurrent protection device Stub wiring (fuse): 0 A
Max. overcurrent protection device V-wiring
Overcurrent protection device V-wiring (fuse): 315 A
Mounting type: On base element
Size: 2 TE
Max. conductor cross-section rigid (single)
Conductor cross-section rigid (solid/multi-stranded): 0 mm²
Max. conductor cross-section flexible (fine-stranded): 0 mm²
Remote signalling: No
Signalling on device: Optical
Test class: Type 1 and 2
Integrated back-up fuse: No
Energetically coordinated protective effect to end device: Yes
Voltage-switching spark gap technology: No
Overcurrent-protected voltage tap: No
Protection class (IP): IP20

Eaton SPRT12-350 surge protection module: further details
Protection module, type 1 to EN 61643-11 on spark gap basis.
EAN: 9010238084520.
