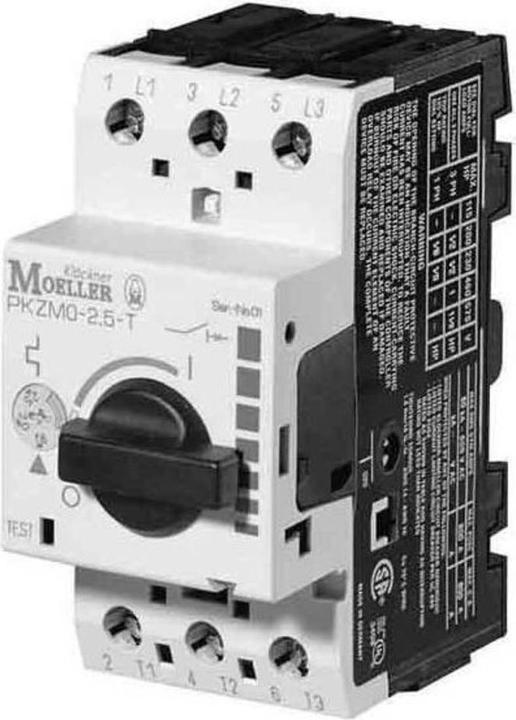

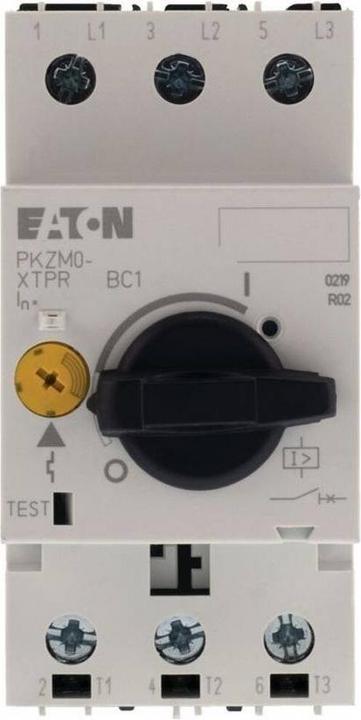

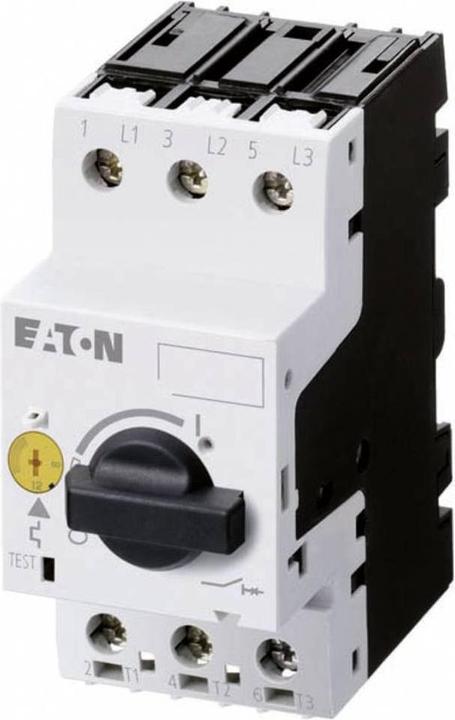

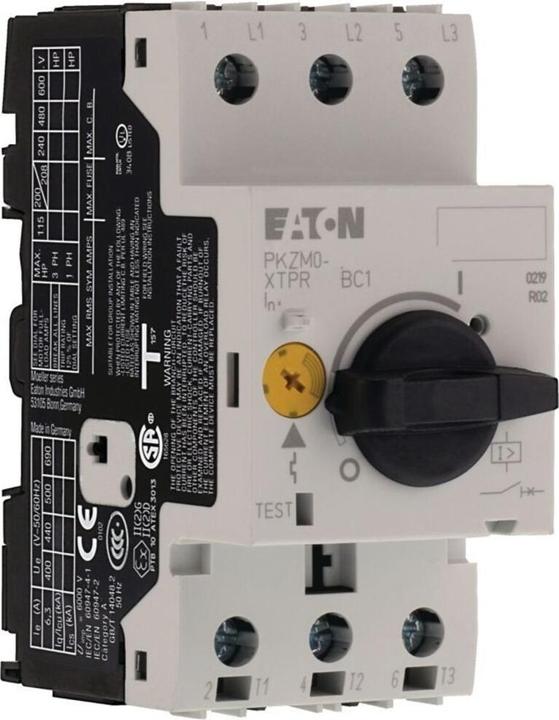

The PKZM0-1.6-T transformer protection switch from Eaton is a reliable and powerful accessory for drive technology. With a rated current of 1.6 A and a rated voltage of up to 690 V, this switch provides an effective solution for protecting transformers and electric drives. The device is suitable for DIN rail mounting, allowing for easy installation. The transformer protection switch is equipped with an adjustable overload protection and a non-delayed short-circuit protection, enabling flexible adaptation to various operating conditions. The size PKZM0 and the protection class IP20 ensure high safety and user-friendliness. The switch is designed for operation in a temperature range of 25 to 55 °C, providing high operational reliability under different climatic conditions.

• Adjustable overload and short-circuit protection mechanisms
• Phase failure sensitivity for increased safety
• Suitable for screw and snap mounting
• Finger-safe according to VDE 0106 T. 100
• Compatible with auxiliary switches for enhanced functionality.
