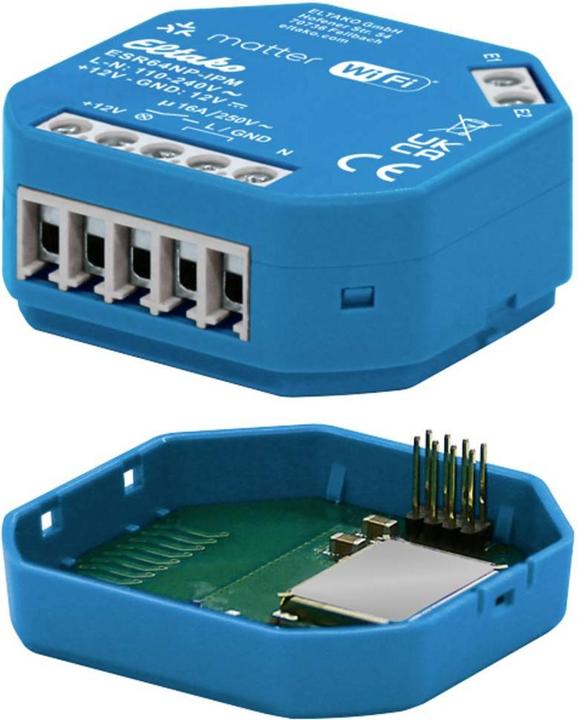

Eltako Actuator pack ESR64NP-IPM

Price in EUR including VAT
Delivered between Mon, 1.6. and Tue, 16.6.
free shipping

Product details

Impulse relay with IP, Matter over Wi-Fi, optional EnOcean, 1 normally open contact not potential-free 16 A/250 V AC, 230 V LED lamps up to 600 W, 230 V incandescent and halogen lamps 2000 W. REST API. Standby loss only 0.7 watts. For flush mounting. Dimensions: 46 x 45 mm, 20 mm deep. The connection terminals are screw terminals for conductor cross-sections up to 2.5 mm². Contact switching at zero crossing to protect contacts and lamps. Supply voltage 12 V DC or 110-230 V AC, switching and control voltage 12 V DC or 110-230 V AC. The switching, control, and supply voltage must have the same potential. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With a control input for a possibly mounted control button or switch. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and allows for over-the-air updates (OTA). This actuator is Matter-certified and can therefore be integrated into various ecosystems and operated in parallel. To control via Matter, a compatible Matter controller is required, depending on the ecosystem. For Apple Home, for example, a HomePod mini; for Amazon Alexa, a compatible Echo Dot; and for Google Home, a Nest mini. The optional configuration of the actuator is done via the ELTAKO Connect app. A development version of the REST API according to OpenAPI specification is available on the device's online product page. This is continuously being developed. The functionality can be expanded with plug-in adapters. The EnOcean adapter (EOA64) provides access to the EnOcean ecosystem. More information can be found on the product page of the respective adapter.

Key specifications

Operating voltage
230 V
Mounting type
Flush-mounted
Smart Home Systems
Amazon AlexaApple HomeGoogle Assistant
Smart Home Protocol
Matter
communicating
Wi-Fi
Items per sales unit
1x

General information

Item number
53619055
Manufacturer
Eltako
Category
Actuator
Manufacturer no.
30064016
Release date
13.12.2024
External links

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
PlasticThermoplastic resin

Actuator properties

Max. Switching capacity
2000 W
rated current
16 A
Operating voltage
230 V
Number of switching outputs
1x
Mounting type
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart home
Compatible
Smart Home Systems
Amazon AlexaApple HomeGoogle Assistant
Smart Home Protocol
Matter
communicating
Wi-Fi
Radio frequency
2400000000 Hz
Requires Smart Home Hub
Yes

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
16,89 kg
Climate contribution
EUR 0,42

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
45 mm
Width
20 mm
Height
46 mm
