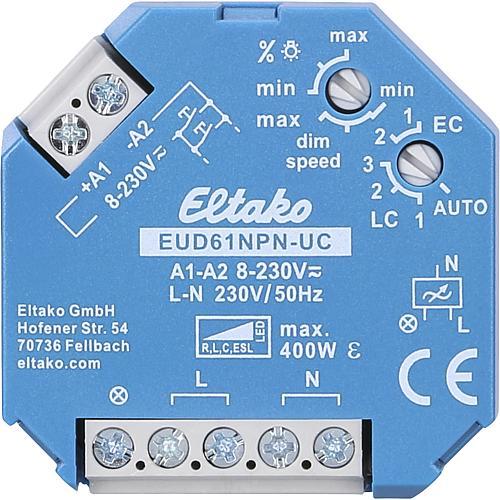

Eltako Dimmer

Dimming actuator
Price in EUR including VAT
Delivered between 8.1.2026 and 15.1.2026
More than 10 pieces in stock at supplier
free shipping

Product details

With control inputs for light switches and light sensors. To protect the lamps, the switching occurs at zero crossing with soft on and soft off. In addition to the minimum brightness, the dimming speed can also be adjusted, which simultaneously changes the duration of the soft on and soft off. In the snooze function, the set value is dimmed down to the minimum brightness and then switched off, while the children's room function gradually brightens up to the set brightness level. Short control commands turn the light on/off, while continuous controls adjust the brightness up to the maximum value. Suitable for resistive, inductive, and electronic loads, which are automatically detected. If energy-saving lamps are to be dimmed, the function rotary switch should be set to ESL. This takes into account the special conditions for dimmable energy-saving lamps. For example, the switching-on process is optimized, and the dimming speed changes logarithmically; a children's room setting is not possible.

Key specifications

communicating
Wireless
Actuator type
Dimming actuator
Mounting type
Flush-mounted
Items per sales unit
1 x
Operating voltage
230 V
Item number
8415904

General information

Manufacturer
Eltako
Category
Actuator
Manufacturer no.
EUD61NPN-UC
Release date
20.4.2018

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
Plastic

Actuator properties

Actuator type
Dimming actuator
Max. Switching capacity
400 W
rated current
2 A
Operating voltage
230 V
Number of switching outputs
1 x
Mounting type
Flush-mounted
Mounting type
Screw fastening
Protection type (IP code)
IP20

Smart home features

Smart Home
Not compatible
communicating
Wireless
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
55 mm
Width
45 mm
Height
18 mm
Weight
50 g

Legal Notice

Product Safety

Package dimensions

Length
9 cm
Width
7 cm
Height
2 cm
Weight
30 g
